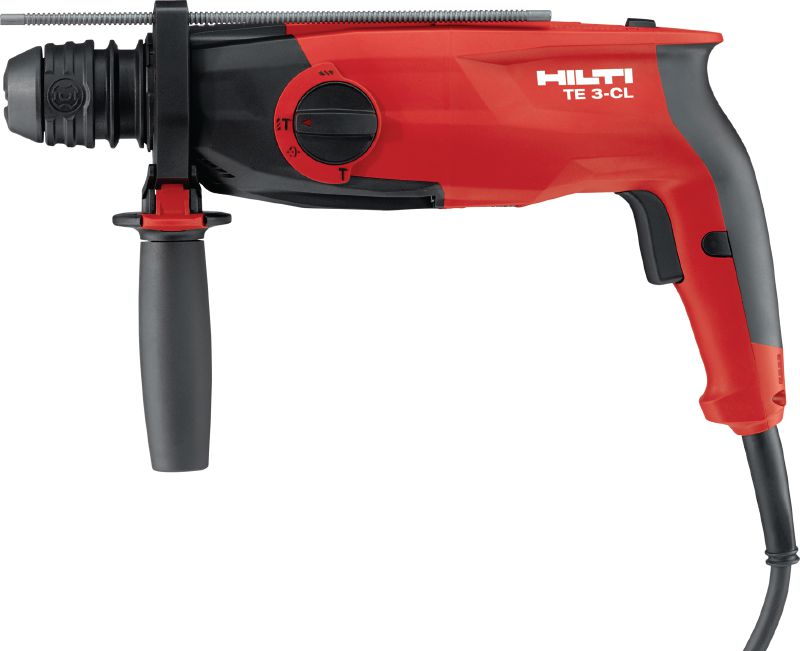

TE 3-CL Rotary hammer

L107337_CL (187117)
TE 3-CL, TE 3-ML, DCD (78813)
L107337_CL (187117)
TE 3-CL, TE 3-ML, DCD (78813)

Powerful pistol-grip, triple-mode SDS Plus (TE-C) rotary hammer – with chipping function and easily changeable brushes

  • Weight according EPTA Procedure 01/2003 without battery: 3 kg
  • Optimum hammer drilling range: 6 - 16 mm
  • Single impact energy: 2.1 J

Customers also searched for Hammer drill, Hammer drill, SDS Plus or SDS Plus.

Technical Data

Weight according EPTA Procedure 01/2003 without battery
3 kg
Optimum hammer drilling range
6 - 16 mm
Single impact energy
2.1 J
Working mode
Chiselling, Drilling, Hammer drilling, Chisel setting
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
1070 rpm
Full hammering frequency
4860 impacts/minute
Functionality
Chipping, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
14.6 m/s² 1
Triaxial vibration for chiselling in concrete
11.2 m/s² 2
A-weighted emission sound pressure level
93 dB (A) 3
Dimensions (LxWxH)
377 x 88 x 204 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling, rotary-only drilling and chiselling
  • Sturdy motor provides high performance and overload protection
  • Innovative, long-lasting hammering mechanism
  • Includes Hilti Cooltec with active cooling to extend tool lifetime
  • Optional, easily-attachable dust collector helps protect the operator from falling dust and fragments when drilling overhead

Applications

  • Drilling and hammer drilling in concrete and masonry
  • Corrective chiselling and light channel chasing in concrete and masonry
  • Drilling in wood and steel using the optional smooth-shank chuck adapter
  • Cutting socket recesses in masonry
  • Driving screws using optional bit holders

For approval or certificate information, please see individual items.
