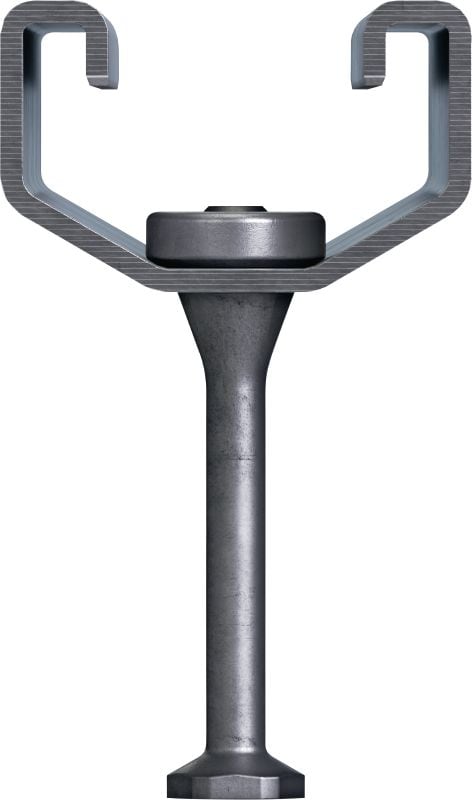

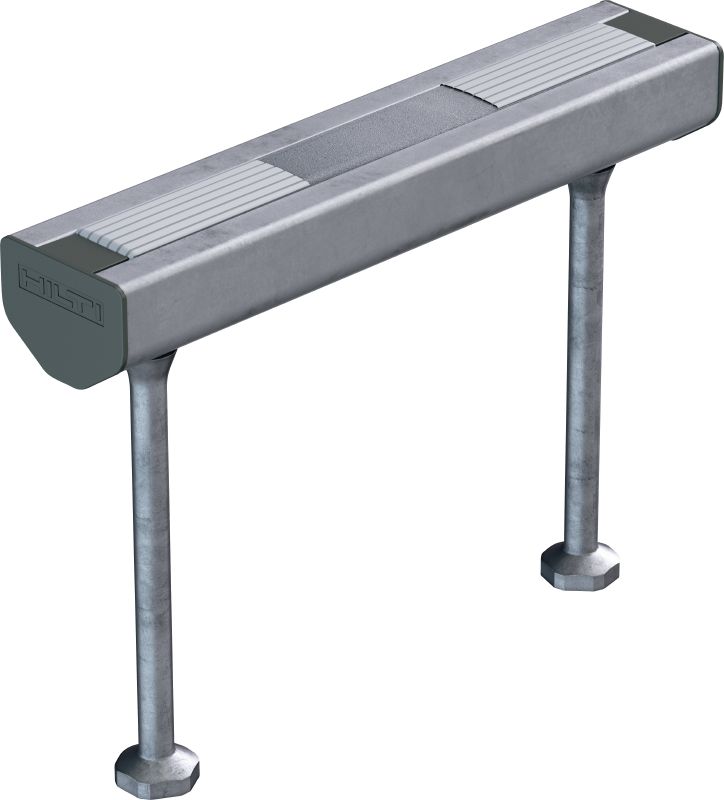

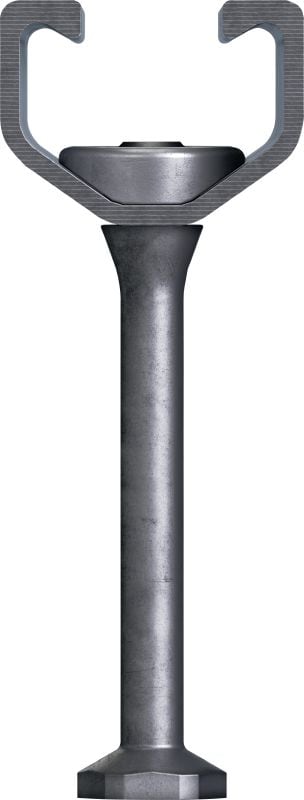

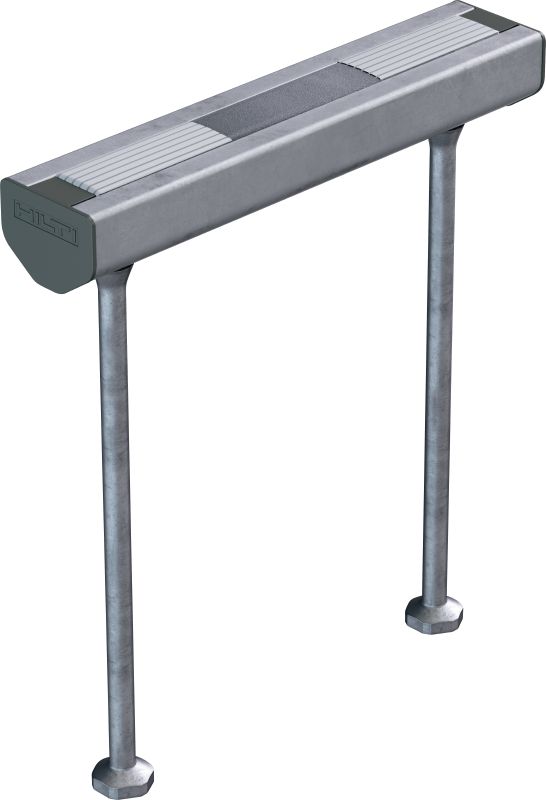

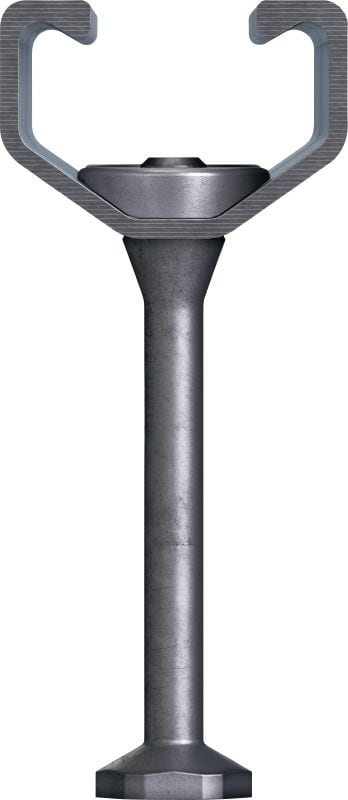

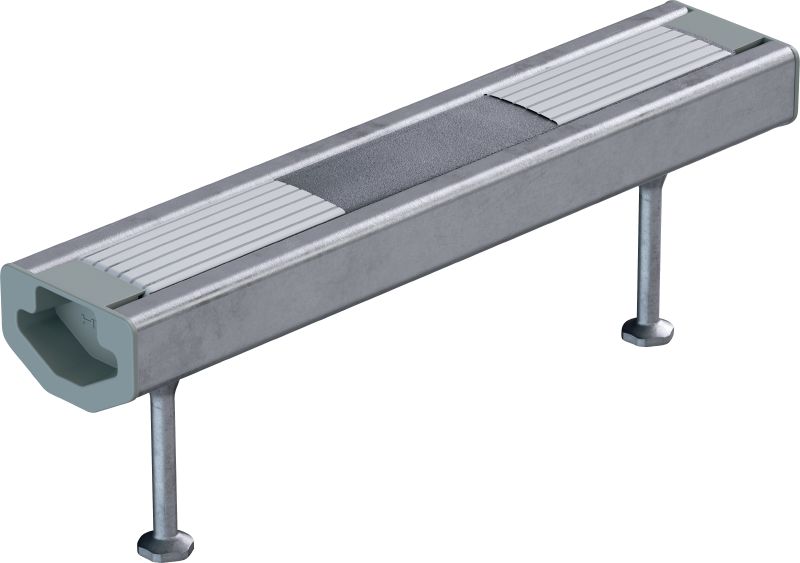

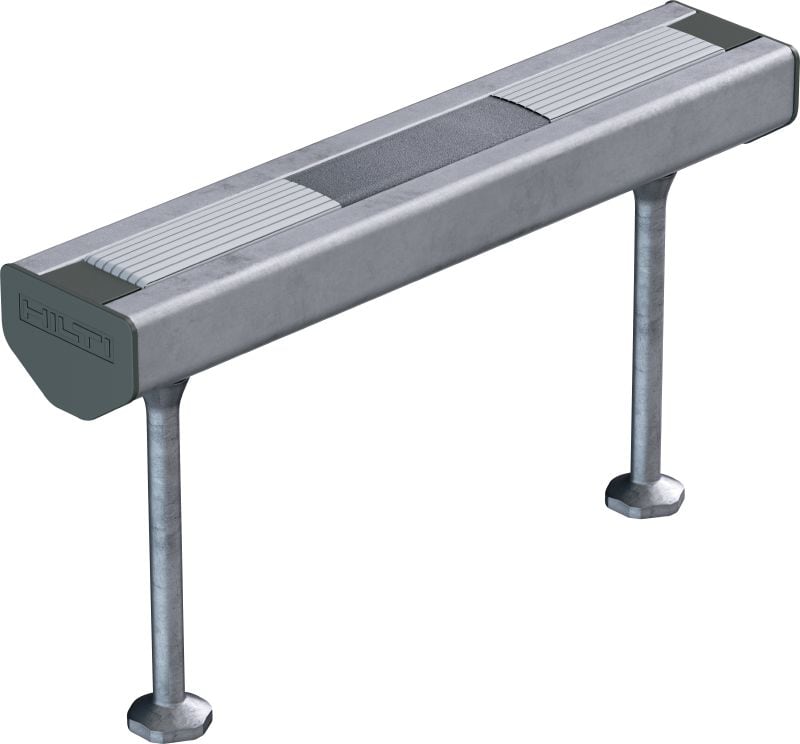

Standard HAC-V Anchor channel

Cast-in anchor channels with upgraded load capacity and multiple embedment depths for economical fastening of curtain wall façades

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanised
  • PROFIS software: Yes

Choose options

Channel profile
  • HAC-V 35
  • HAC-V 40
  • HAC-V 50
  • HAC-V 70
Length
  • 200 mm
  • 250 mm
  • 300 mm
  • 350 mm
  • 450 mm
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanised
PROFIS software
Yes

Documents

Features & Applications

Features

  • Upgraded performance – tension resistance up to 20% higher than previous HAC anchor channels
  • More economical – higher load capacity and multiple embedment depth options so you can use smaller cast-in channels as needed
  • Engineering support available – use PROFIS Anchor Channel software to streamline the design process, or contact your local Hilti team for project-specific advice
  • Faster on-site – automate setting T bolts by using the Hilti Adaptive Torque system, helping you improve consistency and save time when setting hundreds of holts
  • ETA and ICC-ES approval documents for static, fatigue, seismic (ICC-ESR 3520) and fire loading available

Applications

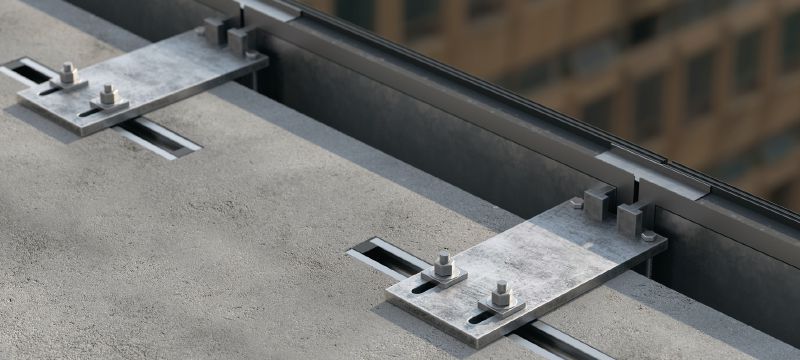

  • Fastening curtain wall façades in concrete slabs

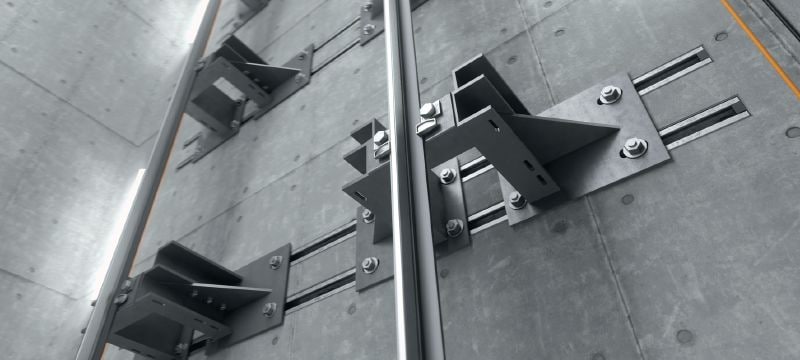

  • Fastening in elevator shafts, such as fixing guiderails, sliding doors or divider beams

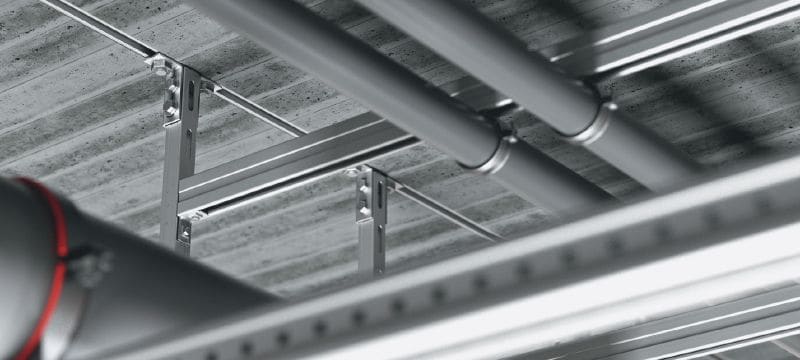

  • Fastening overhead MEP installations and equipment
  • Fastening building appliances (e.g. ventilation, heating)

For approval or certificate information, please see individual items.
