Electrical connector S-BT-EF Threaded Stud

Elec. connector S-BT-EF M10/15 AN 6 #2186204

Configurator
Technical Data
Documents
Features & Applications
Related Products
L105335 (185595)
L076581_v1_cropped (185261)
L076583_v2_cropped (185260)
L076583_v4_cropped (185259)
L076575_v1_cropped (185257)
L076596_v1_cropped (185258)

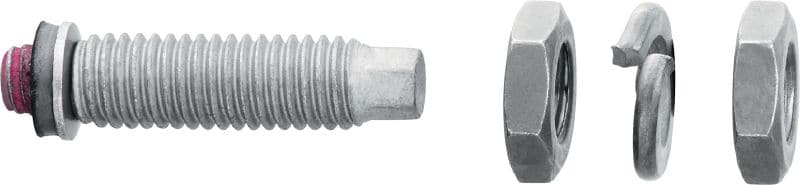

Threaded screw-in stud (carbon steel, metric thread) for electrical connections on steel in mildly corrosive environments

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Duplex coating, equivalent to 45 µm hot-dip galvanised
ultimate

Customers also searched for Electrical grounding, Earthing, Pipe flange bonding or Electrical bonding.

Choose options

Thread size
  • M10
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 19,878.00
ZAR 198.78
/
1 Piece

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Duplex coating, equivalent to 45 µm hot-dip galvanised
Environmental conditions
Indoor, dry, Indoors or mildly corrosive environment, Outdoor, mildly corrosive
Material
Carbon steel
Thread size
M10
Approvals
BV, DNV, UL
Product class
Ultimate

Documents

Approval document
Operating Instruction
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]
pdf ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English [ 1.7 MB ]
pdf BV Type Approval 45116/B0_BV for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R_(NG), X-FCM-M-(NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 535 KB ]
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]
pdf Canadian UL E257069 for X-BT and S-BT fastenings of grounding and bonding equipment, English [ 80.1 KB ]

Features & Applications

Features

  • Faster and easier installation
  • Enhanced protection against static electricity
  • Enhanced safety – allows electrical current to flow through the stud and then discharges it properly into the base material
  • Suitable for use on most standard steel structures and pipes
  • Suitable for use in mildly corrosive environments (C3)

Applications

  • Functional bonding
  • Protective bonding
  • Terminal connection
  • Lightning protection
  • Bonding and earthing/grounding
