Precise transpointer to detect entry and exit points, as well as the distance between them

  • Operating temperature range: -20 - 55 °C
  • Maximum operating time: 17 h
  • Working temperature range: -20 - 55 °C

Customers also searched for wall thickness measuringceiling thickness measuringdrilling through wallsdetermine drill bit length or construction measuring tools.

Technical Data

Operating temperature range
-20 - 55 °C
Maximum operating time
17 h
Working temperature range
-20 - 55 °C

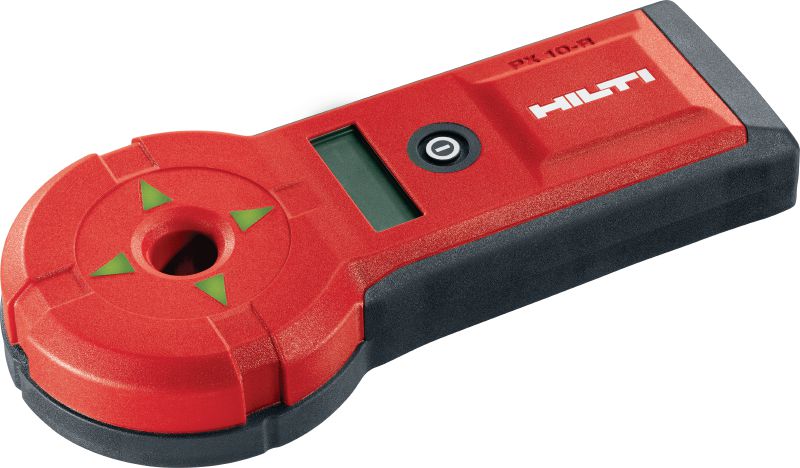

Dimensions (receiver)
210 x 95 x 33 mm

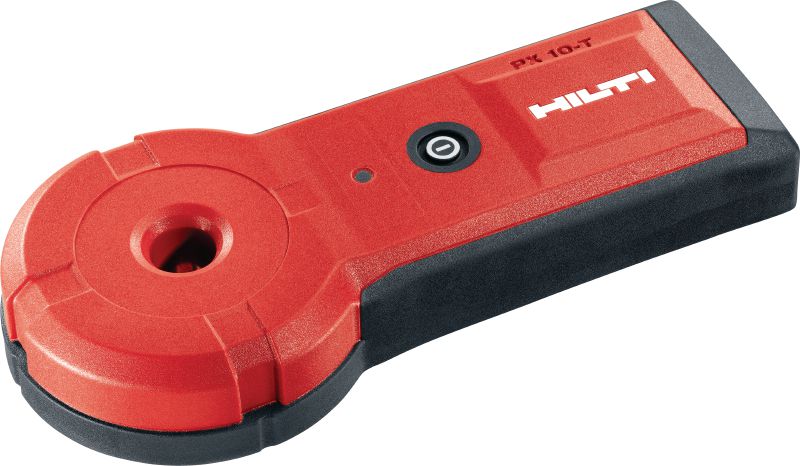

Dimensions (transmitter)
210 x 95 x 33 mm
Weight with batteries
1 kg

Documents

Features & Applications

Features

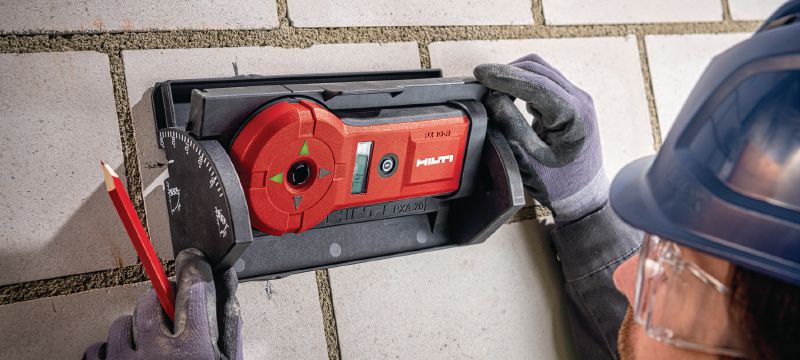

  • Unique slope adapter shows start or exit point of drilling at any drilling angle
  • Position point can be transposed through floors, ceiling and walls – allowing any drilling work to be carried out quickly and efficiently

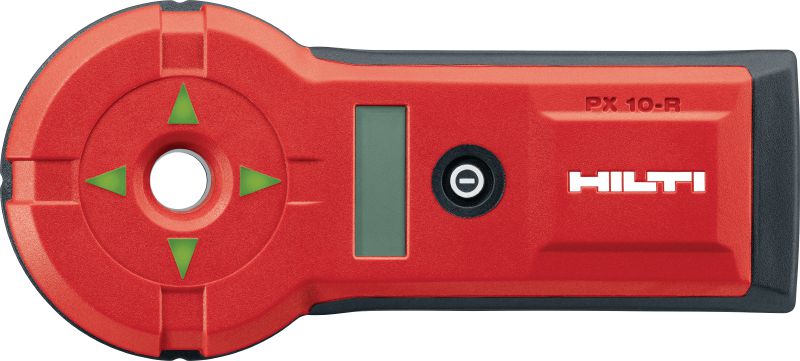

  • User-friendly direction indicators for easy operation
  • Measures wall thickness automatically – saving time by skipping trial-and-error pilot drilling
  • Direction arrows for easy, user-friendly operation

Applications

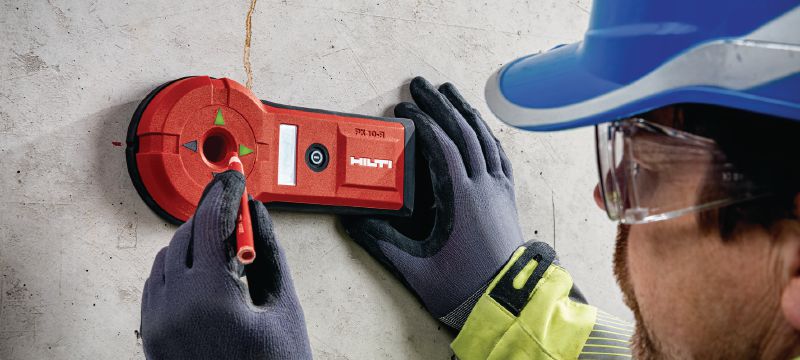

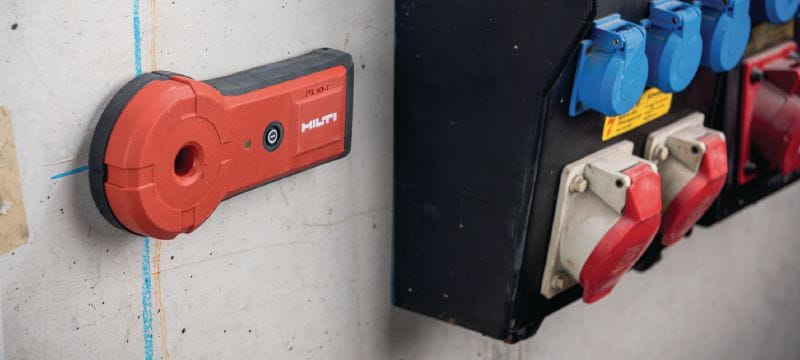

  • Transferring the starting point for drilling through-holes to the other side
  • Wall and ceiling thickness measurement for easy selection of the right drill bit or core bit length
  • Determine drill bit exit position and transfer drilling positions when drilling through walls and ceilings in concrete and masonry
