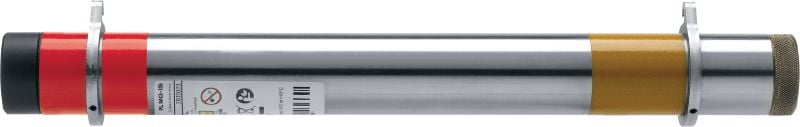

Line- and point laser for alignment applications in mining sector

  • Accuracy: ±3 mm at 10 m
  • Battery type: 2 x 1.5 V (D)
  • Horizontal fan angle: 30 °

Technical Data

Accuracy
±3 mm at 10 m
Battery type
2 x 1.5 V (D)
Horizontal fan angle
30 °
Laser type
Line, Point

Documents

Features & Applications

Features

  • Simple tool setup and usage, easily portable
  • Robust design, durable and impact resistant, water resistant
  • Certified “Explosion Protected” EX ib I/IIc T6, SAEx 09-098, suitable for use in hazardous locations
  • Easy horizontal and vertical alignment of drill-holes
  • Easy to hang, interchangeable lens caps - line and cross lenses

Applications

  • Flat-end development (grade lines, direction lines)
  • In-stope development (direction lines in advance strike gully / advance strike drive, direction lines in raises and winzes)
  • In-stope support (alignment of permanent support, alignment of temporary support), alignment of roof bolts
  • Continuous miner alignment (alignment of drill rigs for correct profiling)
  • Belt extensions (correct alignment of steel supports for belt extension guides)

For approval or certificate information, please see individual items.

Hilti Tool Service

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
