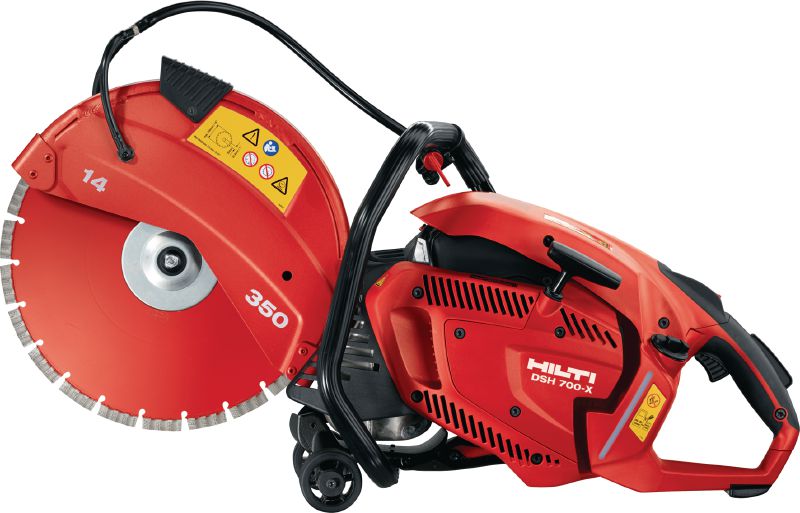

DSH 700-X Petrol cut-off saw
Versatile rear-handle 70 cc petrol saw with auto-choke – cutting depth up to 125 mm
- Motor cylinder: 68.7 cm³
- Rated power: 3.5 kW
- Wet or dry operation: Wet and dry
Technical Data
Motor cylinder
68.7 cm³
Rated power
3.5 kW
Wet or dry operation
Wet and dry
Dimensions (LxWxH)
808 x 261 x 434 mm
Fuel mixture
50:1 (2% oil)
A-weighted emission sound pressure level
99 dB (A) 1
Disc diameter
350 mm
Cutting depth
125 mm
Triaxial vibration value for cutting concrete slab (ah)
4.9 m/s² 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Features & Applications
Features
- Most versatile petrol cut-off saw in its class – even convertible to flush-cut mode
- Easy-start petrol saw – unique auto-choke helps to make first-pull ignition the norm, and flooded engines virtually impossible
- Robust – upgraded air filters and re-engineered internal components help the petrol saw to deliver uninterrupted, high performance
- Easy self-service maintenance – pre-tensioned belt and virtually unbreakable starter rope help to minimise the saw's maintenance downtime
- Compatible with the DSH-P water pump – feeds water to your petrol saw from any source, no pressurisation needed
Applications

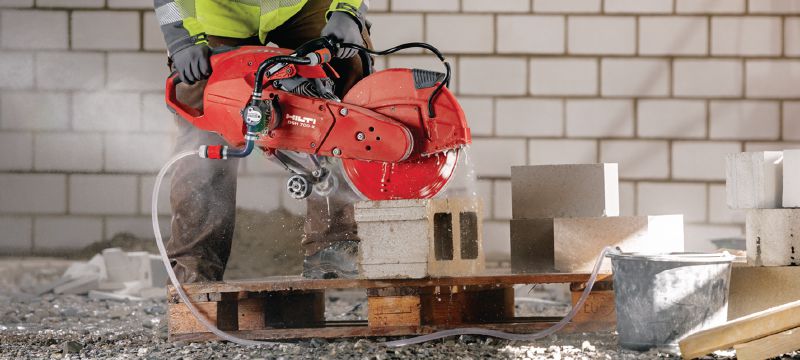

- Construction work – cutting out openings in brick or concrete walls

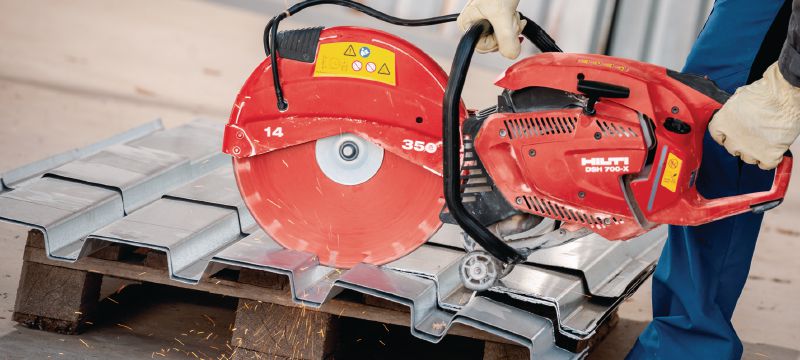

- Metalwork – cutting steel profiles, pipes and steel sheets
- Laying paving – cutting kerbstones and paving slabs to size
- Masonry work – cutting bricks and blocks to size
- Floor construction – cutting expansion joints in fresh concrete
For approval or certificate information, please see individual items.
