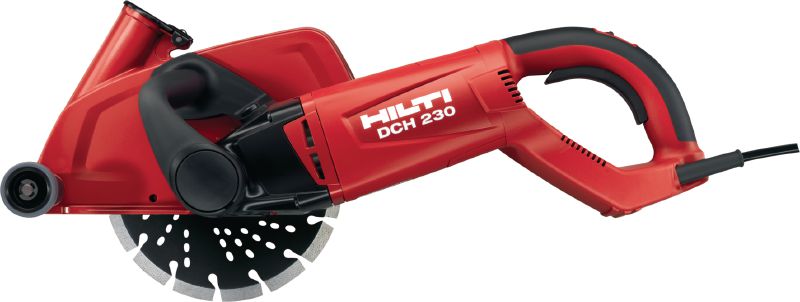

DCH 230 Electric cutter

L025124.tif
15313.tif
DC-D C1-SP_app4_L020539.tif
VC 20-U-Y
L025124.tif
15313.tif
DC-D C1-SP_app4_L020539.tif
VC 20-U-Y

Dry electric hand-held diamond cutter – cutting depth up to 85 mm with 230 mm blade

  • Disc diameter: 230 mm
  • Cutting depth: 80 mm
  • No load RPM: gear 1: 6500 rpm

Customers also searched for diamond cutting angle grinder, cutting metal beams, cutting reinforced concrete, cutting openings for windows or cutting.

Technical Data

Disc diameter
230 mm
Cutting depth
80 mm
No load RPM
gear 1: 6500 rpm
Triaxial vibration value for cutting concrete slab (ah)
4.7 m/s² 1
Arbor size
22.2 mm
A-weighted emission sound pressure level
102.5 dB (A) 2
Dimensions (LxWxH)
670 x 240 x 210 mm
Wet or dry operation
Dry
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Delivers 50% more cutting depth than typical angle grinders
  • The inverted blade rotation guides the tool away from the operator's body and therefore makes cutting easier and safer

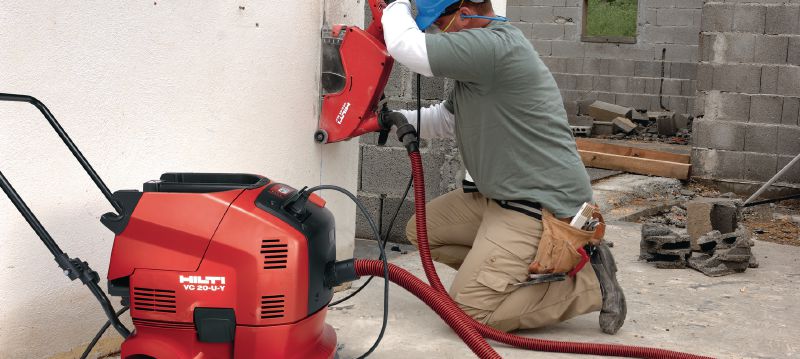

  • Ensures a virtually dust-free jobsite when used with a compatible vacuum cleaner
  • Achieve even greater productivity gains by using with specifically developed Hilti cutting discs
  • Protection against overheating and overloading protection – prolongs the tool's lifetime and increases the operator's safety

Applications

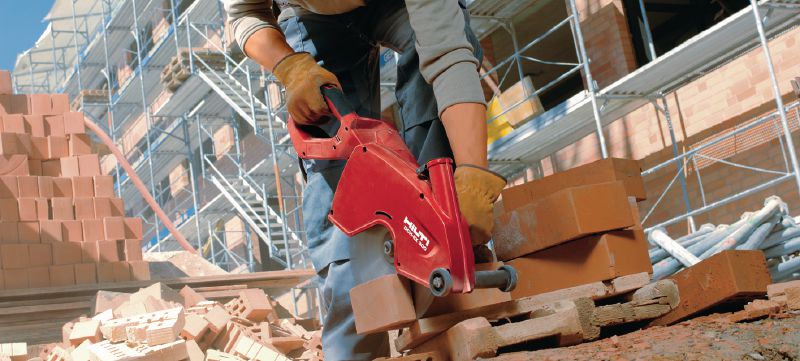

  • Cutting reinforced concrete, granite kerbstones, slabs, brick and masonry blocks
  • Cutting metal beams, steel pipes and reinforcing bars
  • Preliminary cuts for controlled demolition
  • Cutting and extending openings for windows, doors and shafts

For approval or certificate information, please see individual items.

Hilti Tool Service

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • 3-month no-cost period after each repair
  • Smooth on-site pick-up and delivery thanks to our strong partnerships with trusted carriers
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
More information about Tool Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
More information about Fleet Management

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
