TE 500-22 SDS-Max cordless chipping hammer

Cordless breaker TE 500-22 case product number: 2309295

Cordless SDS Max (TE-Y) demolition and chipping hammer with Active Vibration Reduction for chiseling concrete or masonry (Nuron battery platform)

Working direction: Wall
Tool Service 01: 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
Tool chuck type: TE-Y (SDS-max)

Customers also searched for chipping hammer, hilti te 500, hammer drill , sds max or cordless hammer.

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT

ZAR 320,328.47

ZAR 29,120.77

1 Piece

Technical Data

Working direction

Wall

Tool Service 01

3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge

Tool chuck type

TE-Y (SDS-max)

Tool Service 06

Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery

Tool body weight

6 kg

Tool Service 10

After the no-cost period, repair costs are capped

Single impact energy

8.1 J

Full hammering frequency

3300 impacts/minute

Dimensions (LxWxH)

528 x 118 x 264 mm

Triaxial vibration for chiselling in concrete

8.7 m/s² ¹

A-weighted emission sound pressure level

95 dB (A) ²

Rated voltage

21.6 V

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 734.8 KB ]

Download

Features & Applications

Features

Uncompromised cordless performance – revolutionary Nuron batteries deliver the power to help you boost productivity and gain independence from other power supplies
More power, more possibilities – TE 500-22 chipping hammers can perform all the full range of tasks as comparable corded demolition hammers
Reduced worker fatigue – Active Vibration Reduction (AVR) helps minimise your exposure to vibration, better protecting your health and reducing interruptions on the jobsite
Virtually dust-free demolition – contributes to safer jobsites when used with a DRS-B dust removal system connected to a compatible Hilti vacuum cleaner
On the Nuron battery platform – cordless chipping hammers without compromise thanks to longer-lasting Nuron batteries, high-performance chisels and a range of services to keep you productive, today and tomorrow

Applications

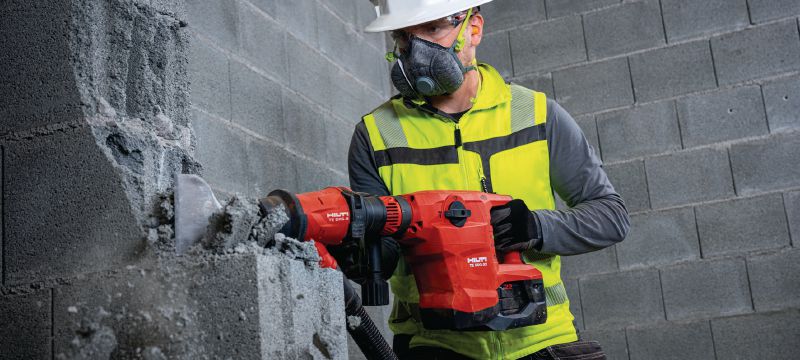

Demolishing concrete and masonry walls

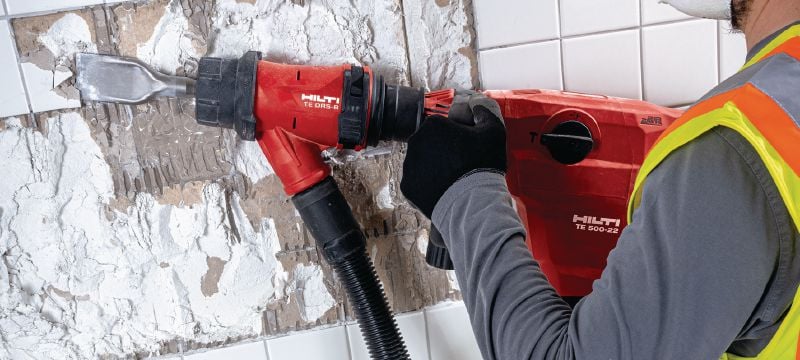

Removing tiles and plaster
Loosening compacted earth
Chiseling breaches, channels or penetrations for pipes in walls and floors
