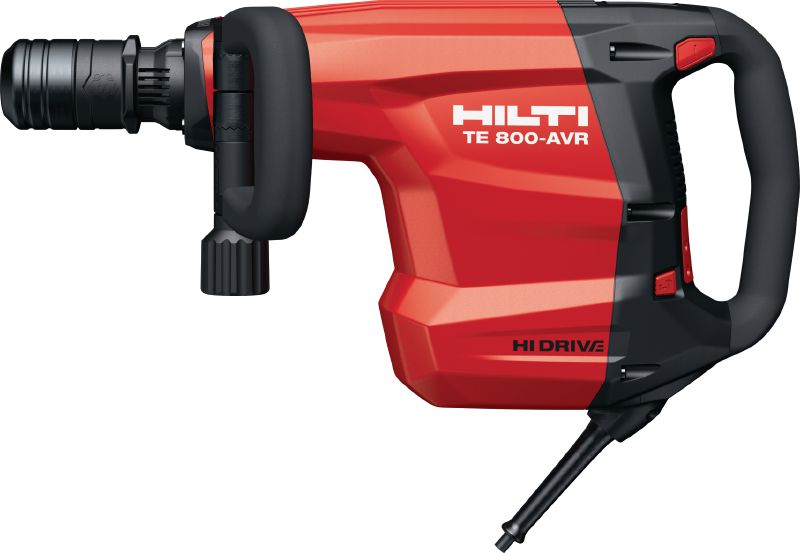

TE 800-AVR Concrete demolition hammer

Very powerful TE-S demolition hammer for heavy-duty chiselling in concrete, with Active Vibration Reduction (AVR)

  • Working direction: Wall, Floor
  • Tool chuck type: TE-S
  • Weight according EPTA Procedure 01/2003 without battery: 10.6 kg

Customers also searched for Wall and Floor Breakerbreaking concreteConstructionconcrete demolition or Demolition Hammers & Breakers.

Technical Data

Working direction
Wall, Floor
Tool chuck type
TE-S
Weight according EPTA Procedure 01/2003 without battery
10.6 kg
Single impact energy
21 J
Full hammering frequency
1890 impacts/minute
Max. chiselling performance
2500 cm³/min
Dimensions (LxWxH)
587 x 141 x 326 mm
Triaxial vibration for chiselling in concrete
9.0 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
90 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Powerful breaking performance thanks to exceptional impact energy and innovative Hilti chisels
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • High robustness and long lifetime due to separate lubrication chambers
  • Power reduction button for use on lighter materials and for greater precision in controlled breaking jobs
  • Optional TE DRS-B dust removal system collects up to 95% of fine dust

Applications

  • Demolition work on walls
  • Corrective work on floor slabs
  • Breaking out openings for doors and windows
  • Making penetrations for ducts and pipes

For approval or certificate information, please see individual items.

Hilti Tool Service

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • 3-month no-cost period after each repair
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 1-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
