DD 200 G02 (DD-ST 200) Core drill

Diamond coring tool DD 200 230V BL ST #2124826

Configurator
Technical Data
Documents
Features & Applications
Related Products
Hilti Tool Service
DD 200, DD-ST 200 (79449)
DD 200, DD-ST 200 (79444)
DD 200 (DD-ST 200) (81172)
DD 200 (DD-ST 200) (81173)
DD 200 (81184)

Simple heavy-duty diamond drilling tool for coring medium and large diameters up to 500 mm

  • Diameter range: 35 - 500 mm
  • Rated input voltage: 230 V
  • Base material: Concrete

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 150,783.77
ZAR 150,783.77 / 1 Piece

Technical Data

Diameter range
35 - 500 mm
Rated input voltage
230 V
Base material
Concrete
Operation mode
Rig-based drilling system
Rated input power
3200 W
Number of gears
3
No load RPM
gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm
Weight according EPTA Procedure 01/2003 without battery
20.4 kg
Weight of complete system
33 kg
Dimensions (LxWxH)
550 x 195 x 415 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
HCL/HCS
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction DD 200 (02), Arabic, cn, German, English, Spanish, Finnish, French, Italian, Kazakh, Portuguese, Russian, Turkish, Ukrainian, Chinese [ 9.8 MB ]

Features & Applications

Features

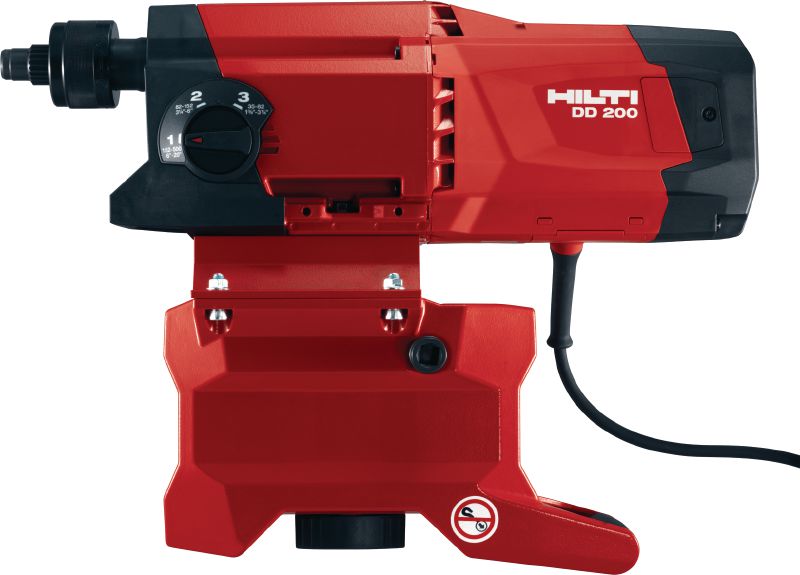

  • Air-cooled heavy-duty drive unit with three-speed gearing and convenient controls

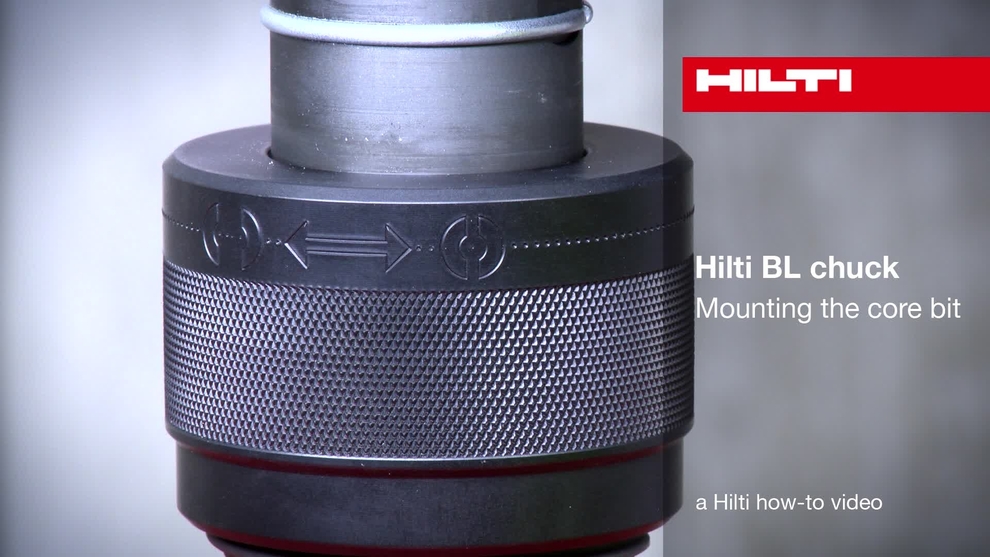

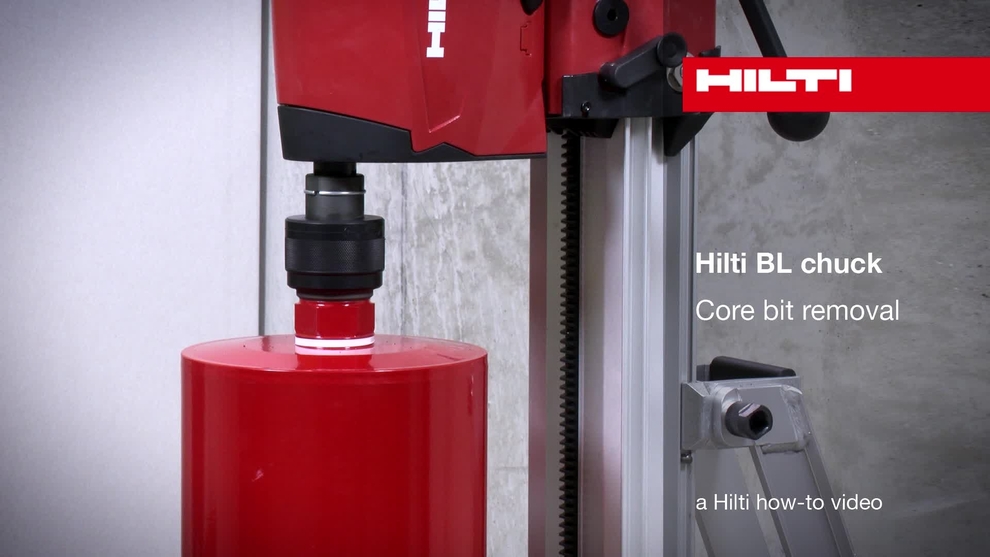

  • Optional BL quick-release connection lets you change core bits in seconds - no tools required (keyless system)
  • Extremely sturdy, robust design
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life

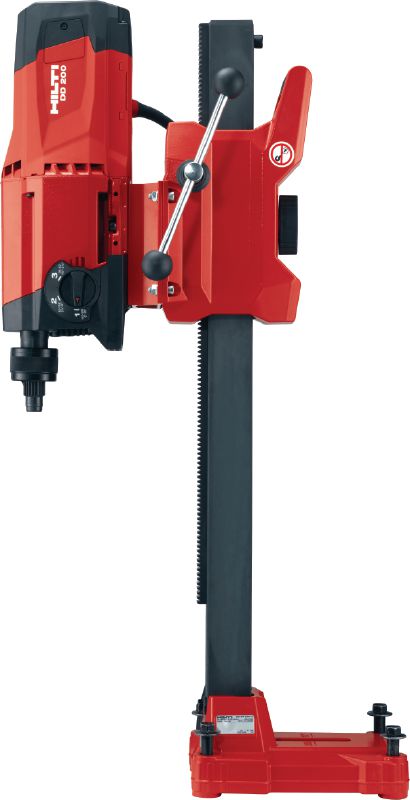

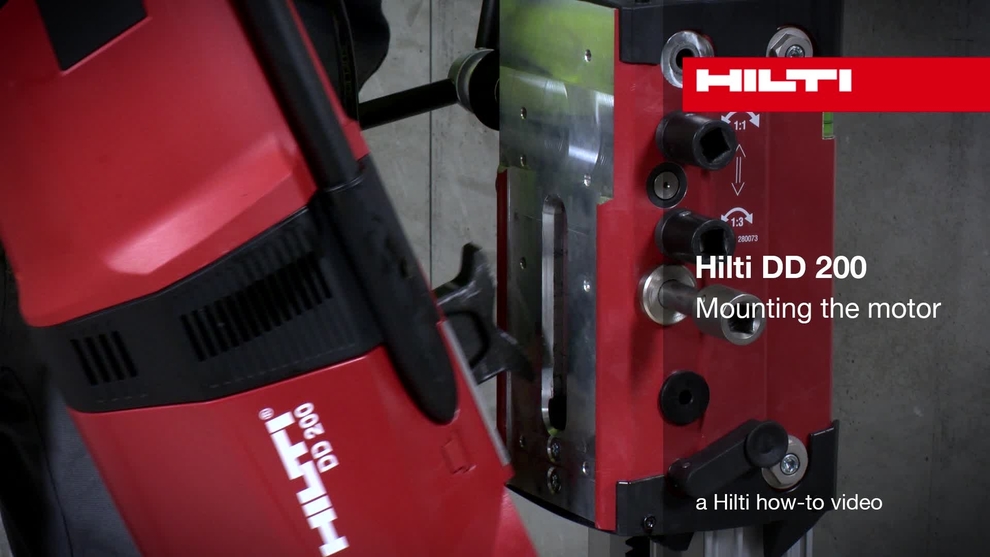

  • Compatible with the sturdy and simple DD-ST 200 drilling stand, as well as many common, industry-standard drilling stands

Applications

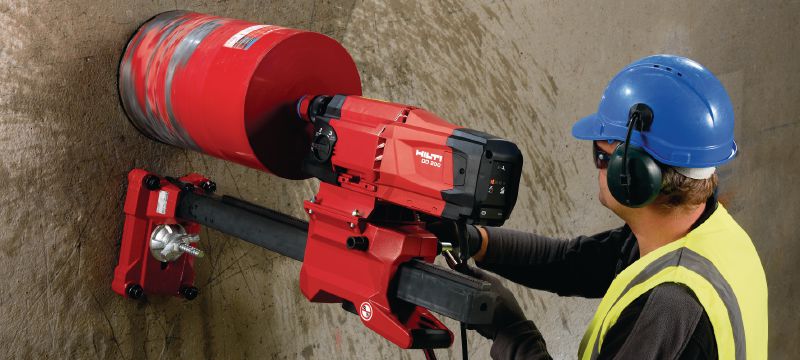

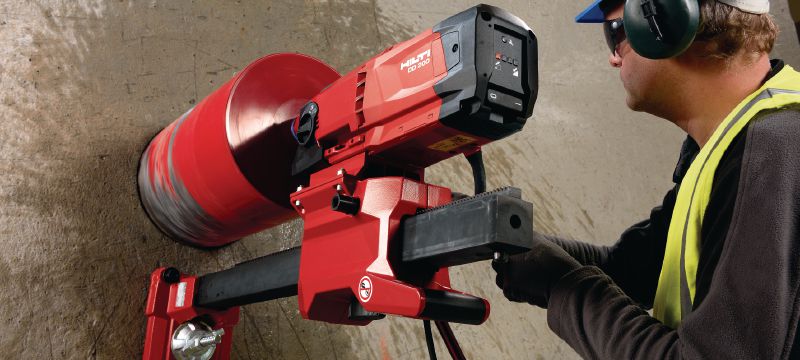

  • Making penetrations for ducts, pipes and cables
  • Openings for ventilation
  • Stitch drilling for breaches
  • Coring holes for service entries

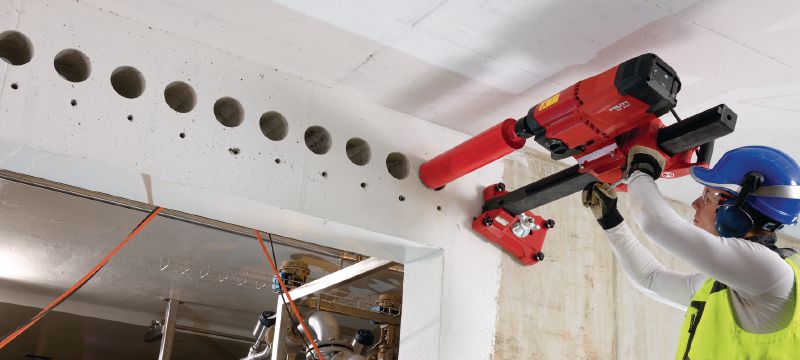

  • Coring holes in ceilings, walls and floors without hammering and vibration
