DD 160 Core drill

Configurator
Technical Data
Documents
Features & Applications
Related Products
Hilti Tool Service
61792.tif

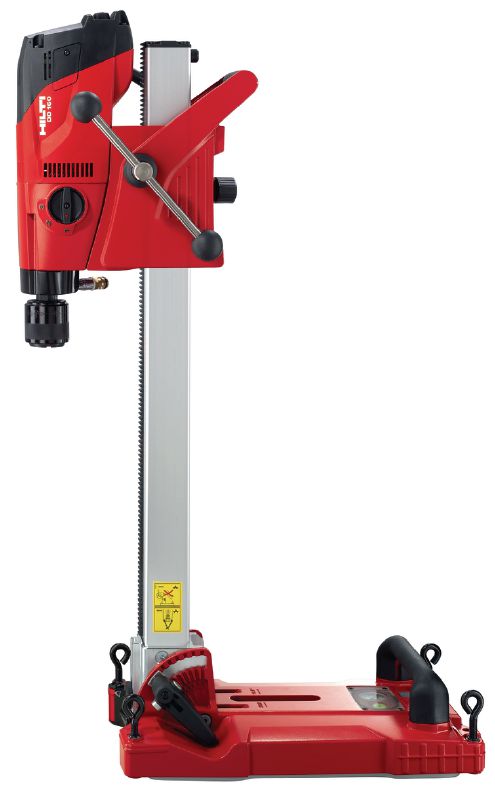

Drill Stand
Drill Stand
61789.tif
61791.tif
61790.tif
61788.tif

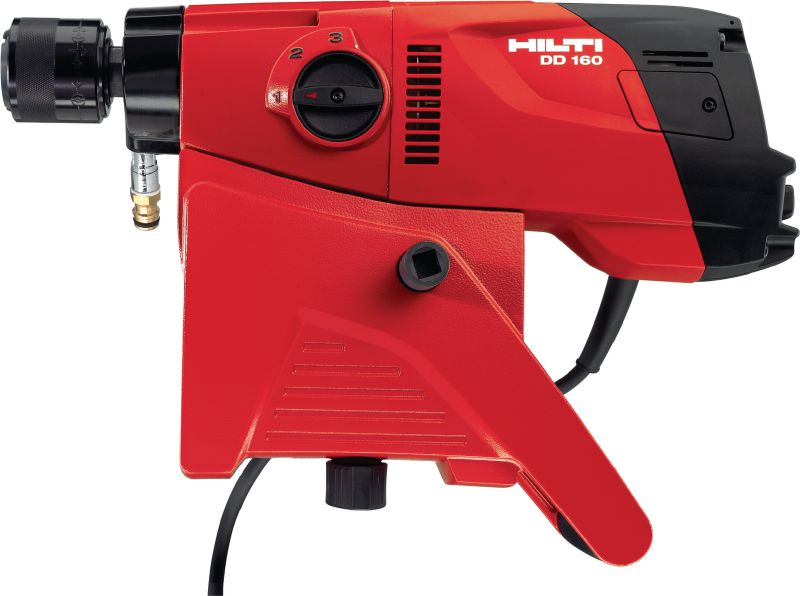

Compact but powerful diamond coring machine for rig-based concrete coring from 25-202 mm (31/32 – 7-15/16") in diameter

  • Diameter range: 25 - 202 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 46,898.35

Technical Data

Diameter range
25 - 202 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 460 rpm; gear 2: 760 rpm; gear 3: 1690 rpm
Weight according EPTA Procedure 01/2003 without battery
10.3 kg
Weight of complete system
16 kg
Dimensions (LxWxH)
450 x 195 x 315 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
4 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
PS/PL
Corner accessibility
53 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Operating Instruction
Material safety datasheet
Instruction for use
pdf Operating Instruction DD 160 (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese [ 14.9 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]
pdf Operating Instruction Taiwan RoHS DD 160, cn, English, Chinese [ 249.8 KB ]
pdf Operating Instruction DWP 10 (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 6.5 MB ]
pdf Operating Instruction DWP 10 (ENHE), English, Hebrew [ 2.5 MB ]

Features & Applications

Features

  • Exceptionally user-friendly thanks to intuitively-designed features and controls
  • Sturdy three-speed gearing for outstanding concrete coring performance across the entire diameter range
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
  • Choice of a high-grade drill stand with many useful features or simple, very compact drill stand with basic functionality
  • Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

Applications

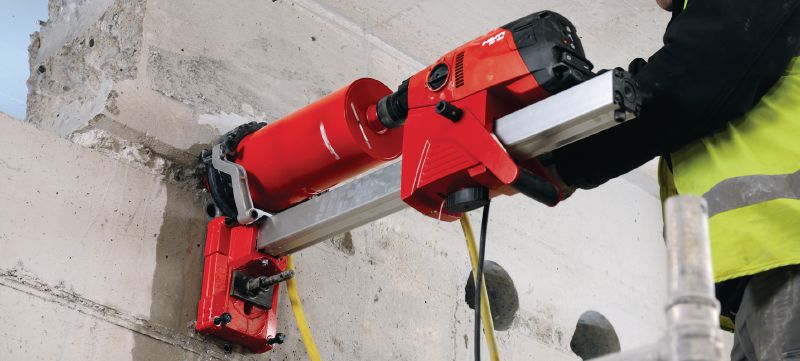

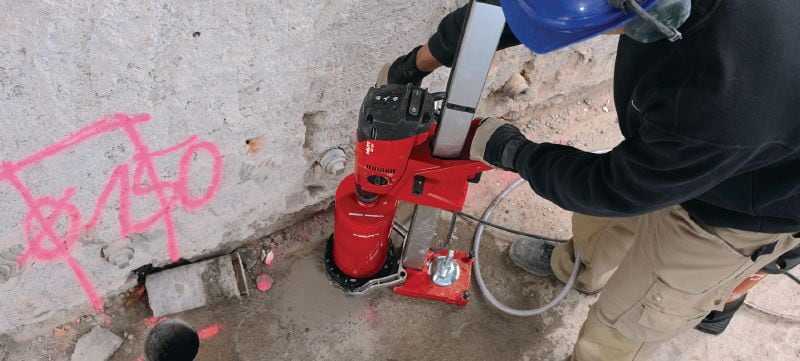

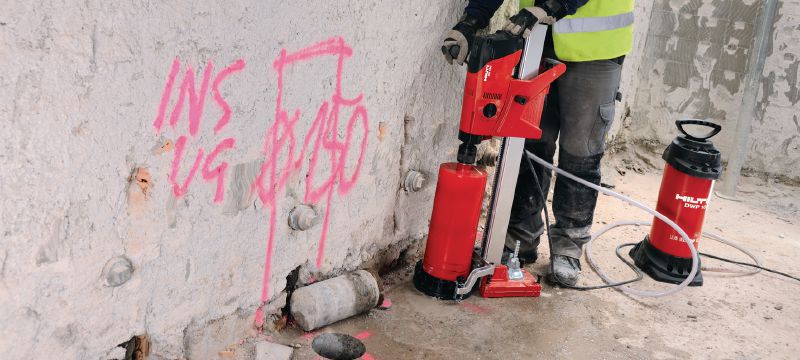

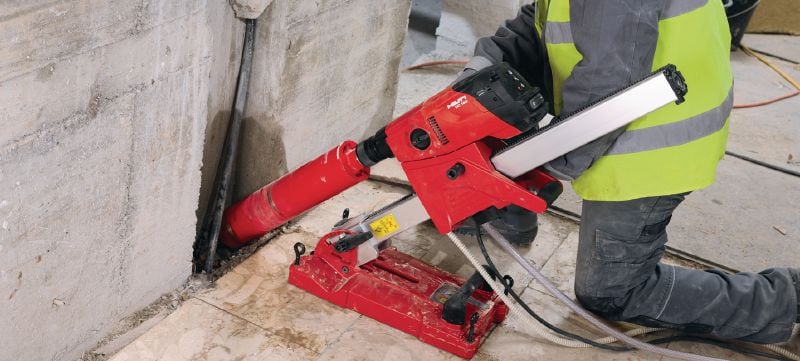

  • Rig-based wet drilling in concrete for pipe penetrations in plumbing, heating and air conditioning installations
  • Stitch drilling for cable trays and ventillation ducts
  • Drilling blind holes for large-diameter anchors, reinforcing bars and the installation of railings and barriers
  • Rig-based core drilling in wood up to 202 mm (8") diameter

For approval or certificate information, please see individual items.

Hilti Tool Service

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • 3-month no-cost period after each repair
  • Smooth on-site pick-up and delivery thanks to our strong partnerships with trusted carriers
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
More information about Tool Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
More information about Fleet Management

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
