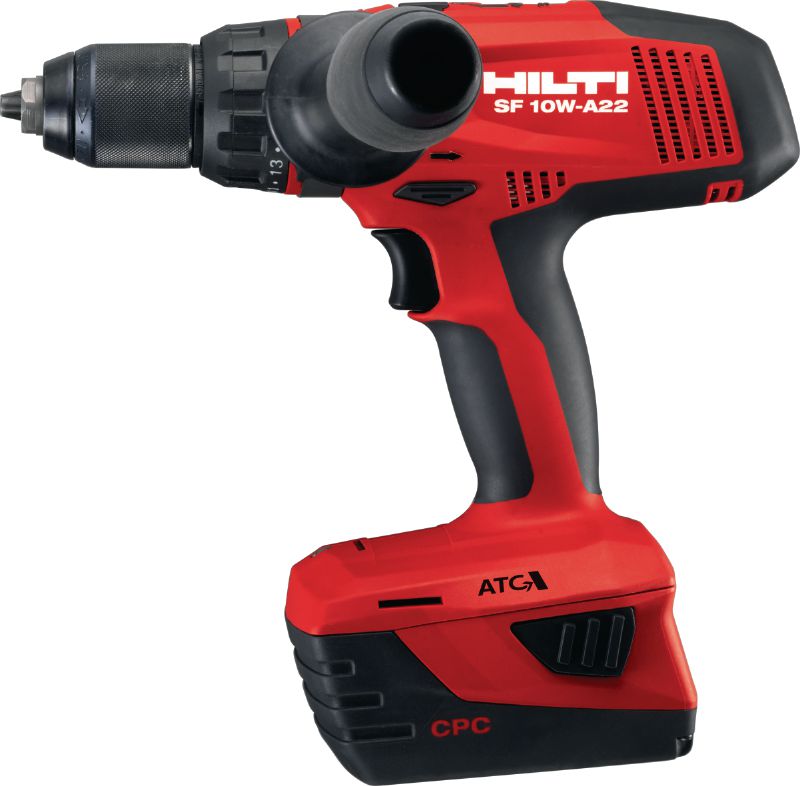

SF 10W-A22 ATC Cordless drill driver
Ultimate class 22V cordless drill driver with Active Torque Control and four-speed gearing for high torque in demanding applications in wood and other materials
- Maximum torque (soft/hard joint): 72 Nm (soft joint), 120 Nm (hard joint)
- No load RPM: gear 1: 310 rpm; gear 2: 530 rpm; gear 3: 1210 rpm; gear 4: 2100 rpm
- Chuck clamping range: 2 - 13 mm
Technical Data
Maximum torque (soft/hard joint)
72 Nm (soft joint), 120 Nm (hard joint)
No load RPM
gear 1: 310 rpm; gear 2: 530 rpm; gear 3: 1210 rpm; gear 4: 2100 rpm
Chuck clamping range
2 - 13 mm
Number of gears
4
Torque increments
15
Dimensions (LxWxH)
264 x 92 x 259 mm
Tool body weight
1.87 kg
A-weighted emission sound pressure level
75 dB (A) 1
Rated voltage
21.6 V
Triaxial vibration value for drilling into metal (ah,D)
2.5 m/s² 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Extremely powerful: high torque for the toughest applications
- Extremely durable 4-speed all-metal gearing for high torque
- Top speed of 2,100 rpm for fast drilling in 4th gear
- The first Hilti cordless drill driver featuring Active Torque Control for greater safety and highest user confidence
- Metal chuck sleeve for better handling
Applications

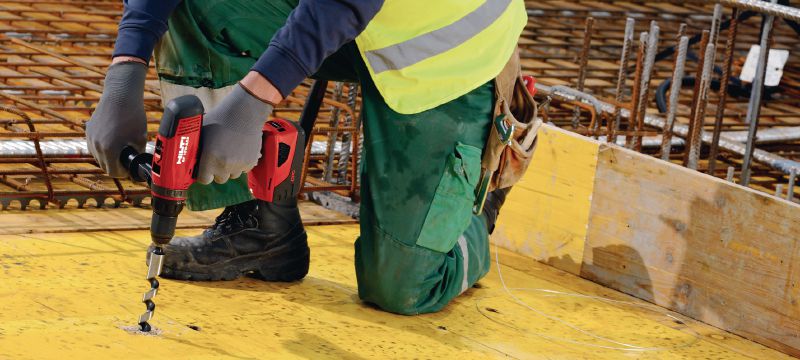

- Drilling with spade bits up to 40 mm diameter in wood
- Drilling with auger bits up to 50 mm diameter in wood
- Cutting recesses and through holes using hole saws up to 152 mm diameter

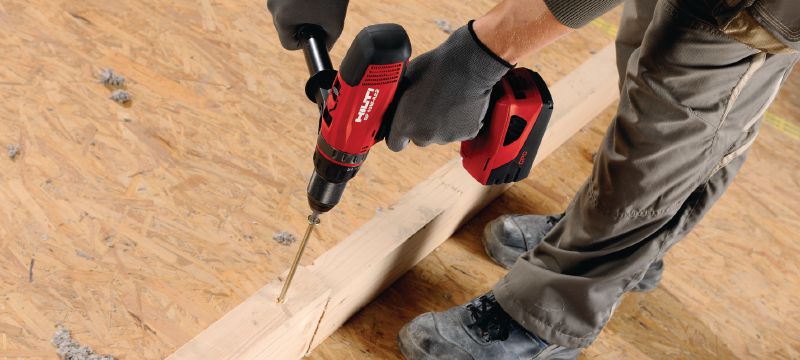

- Driving heavy-gauge wood screws
- Driving screws up to 12 mm diameter and 400 mm in length in wood
For approval or certificate information, please see individual items.
Hilti Tool Service
Hilti Tool Service
- 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
