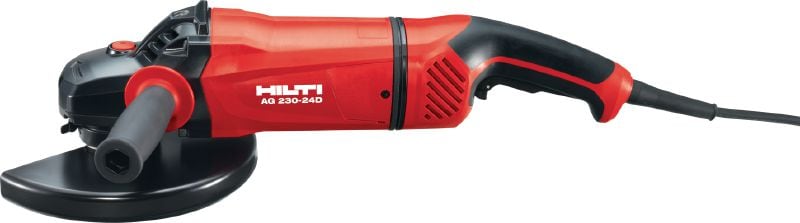

AG 230-24D Angle grinder

Angle grinder AG 230-24D box #2484928

AG 230-24D (89262)
L098346_cropped (179175)
L098359_cropped (179173)
L098390_cropped (179177)
L098374_cropped (179176)

2400W angle grinder with dead man's switch, rotatable grip and long-lasting carbon brush, for discs up to 230 mm

  • Disc diameter: 230 mm
  • Weight according EPTA Procedure 01/2003 without battery: 6.5 kg
  • Max. cutting depth: 68 mm

Customers also searched for HVAC, Plumbers, Plumbing, Electrical or Construction.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 8,016.02
ZAR 8,016.02
/
1 Piece

Technical Data

Disc diameter
230 mm
Weight according EPTA Procedure 01/2003 without battery
6.5 kg
Max. cutting depth
68 mm
No load RPM
gear 1: 6500 rpm
Trigger type
Deadman switch
A-weighted emission sound pressure level
97 dB (A) 1
Triaxial vibration value for angle grinding (ah,AG)
5.8 m/s² 2
Disclaimer
Use the specified guard for the type of disc selected
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction AG 230-24D (04), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Chinese [ 8.8 MB ]

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the disc jams – helping to reduce a common safety hazard
  • Hilti Smart Power technology automatically adjusts power output to suit the material being cut – helping to deliver consistently high cutting performance and to protect the motor from overload
  • Active Vibration Reduction (AVR) makes the tool much less tiring to use – helping to increase daily productivity

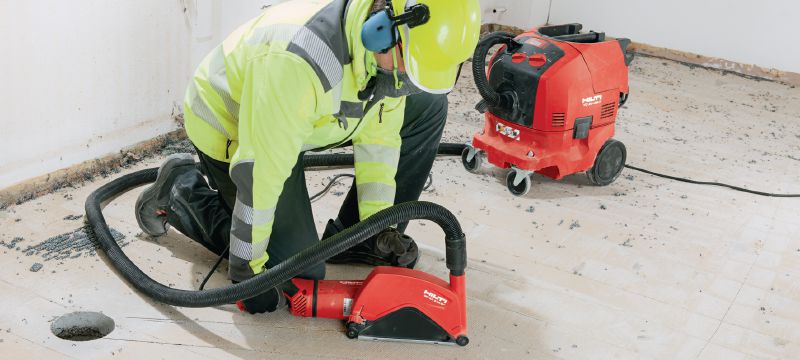

  • Rugged dust removal hood (optional) for virtually dustless operation and soft grips for greater working comfort
  • Adjustable side handle – for a secure, comfortable grip when working in any position

Applications

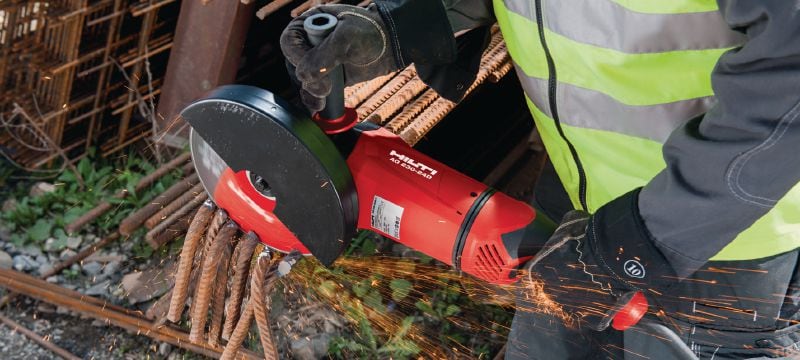

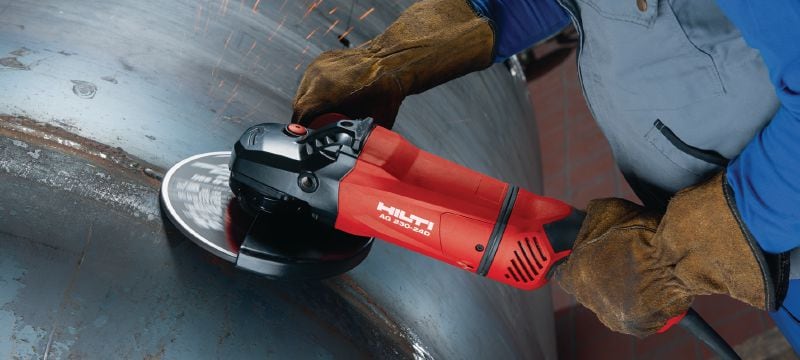

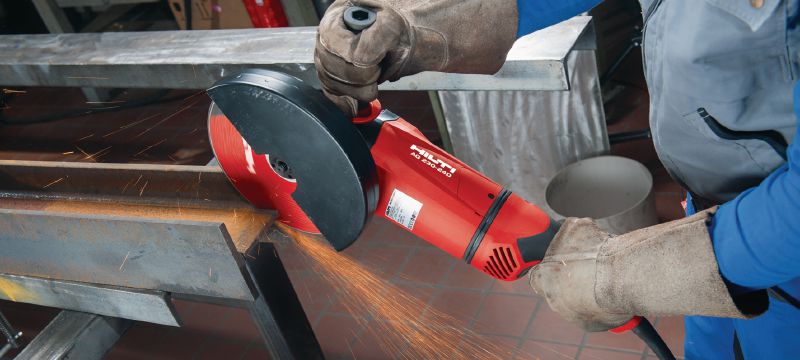

  • Cutting and grinding steel and metal
  • Cutting concrete
  • Slitting for the installation of cable conduits in concrete and brick

Hilti Tool Service

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
  • Smooth on-site pick-up and delivery thanks to our strong partnerships with trusted carriers
  • Exclusive use of genuine Hilti spare parts
More information about Tool Services

LifeTime Services

  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
  • Cost estimates are free of charge
More information about LifeTime Services
