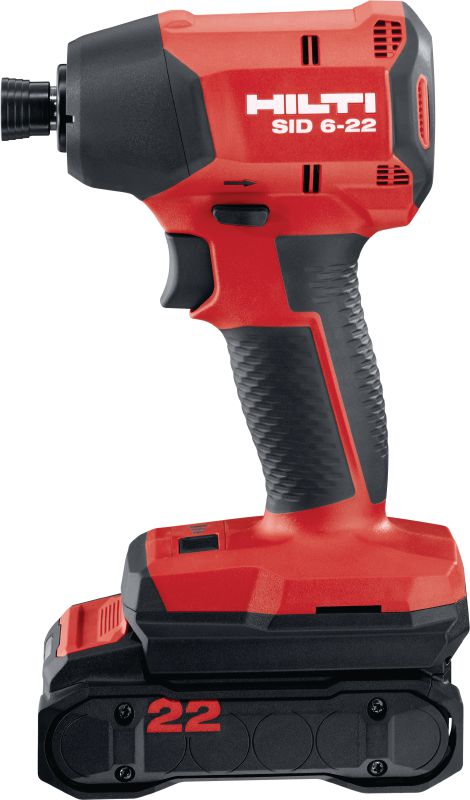

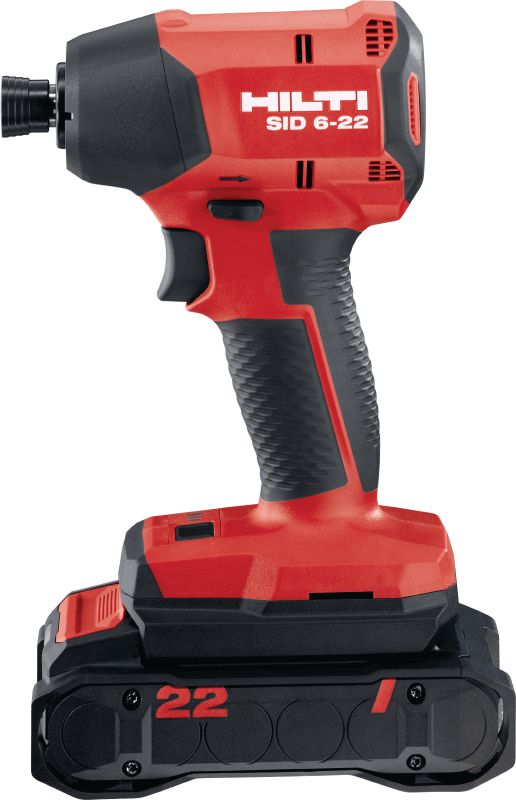

SID 6-22 Cordless impact driver

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT

From ZAR 10,178.43

Technical Data

Feature

LED light ring around the chuck

Chuck type

1/4" hexagonal click-in

No load RPM

gear 1: 1800 rpm; gear 2: 2700 rpm; gear 3: 3600 rpm

Maximum torque

150 Nm (1); 300 Nm (2); 300 Nm (3) ¹

Full hammering frequency

4250 impacts/minute

Number of gears

Dimensions (LxWxH)

138 x 68 x 206 mm

Tool body weight

0.994 kg

A-weighted emission sound pressure level

94 dB (A) ²

Tri. vibr. val. for impact tightening of fasteners at max. cap. of tool (ah)

13.4 m/s²

Rated voltage

21.6 V

Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SID 6-22 (01), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 2.9 MB ]

Download

Features & Applications

Features

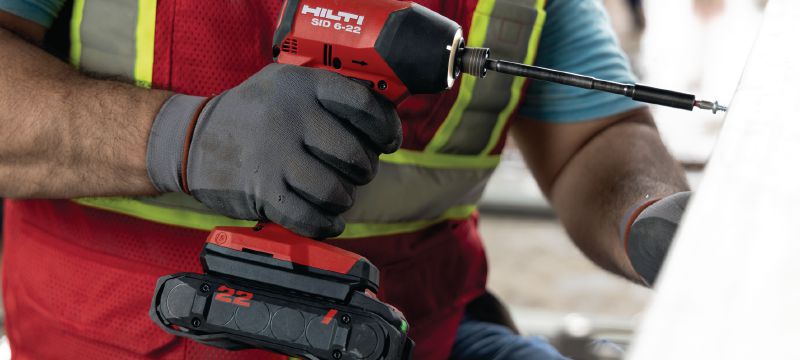

Uncompromising speed – the 3600 rpm brushless motor and rapid trigger response help you save time on every single fastening
Longer battery run time – smart, efficient Nuron 22V batteries work with the brushless motor to deliver our longest ever working time per charge from a cordless impact driver
Extra-compact size – at just 137 mm from front to back, this is the ideal cordless impact driver when you need power in tight spaces

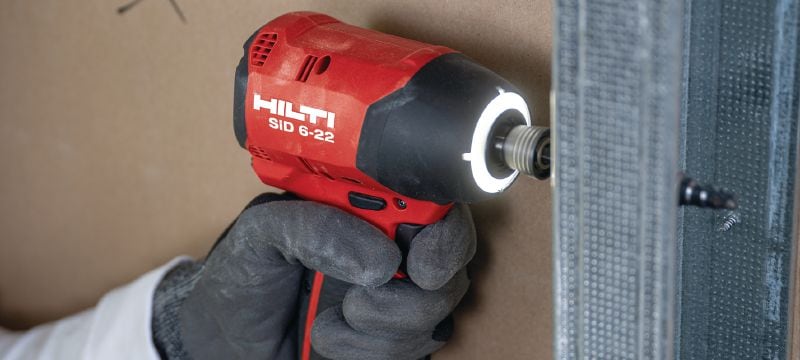

LED light ring around the chuck – for a clearer, glare-free view of your work area
Ergonomic grip – textured and contoured for more comfortable control during long periods of use, or when working overhead

Applications

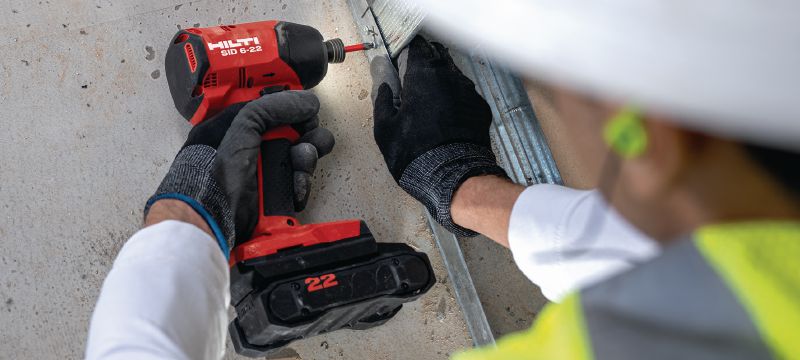

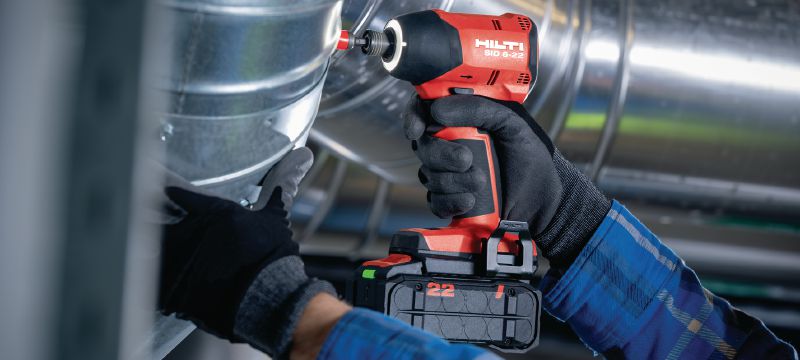

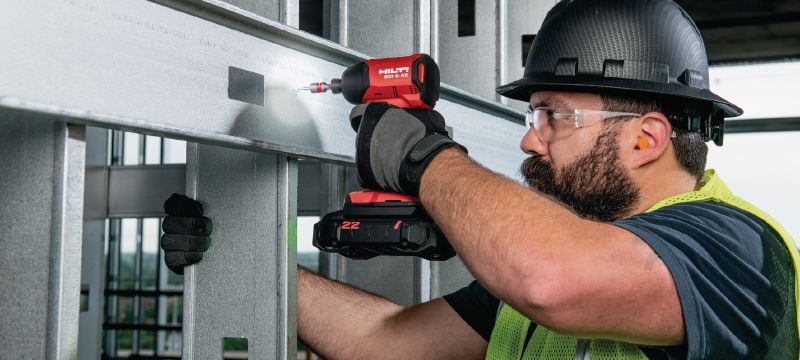

Fastening jobs where a minimised time-per-fastening is essential – such as metal deck, stud framing, HVAC, formwork, prefab and glazing

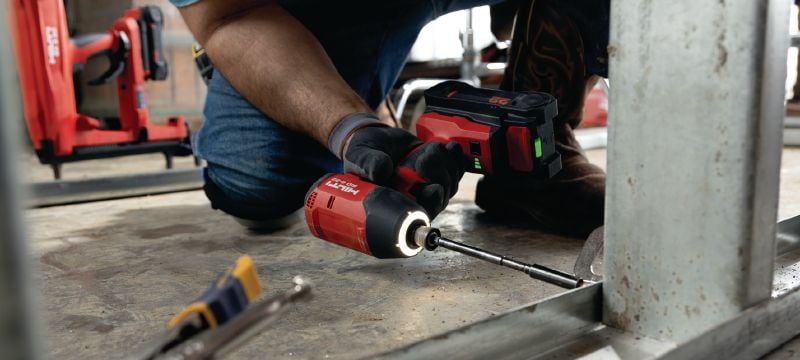

Self-drilling screws – optimised for drilling through metal, then driving threads to completion

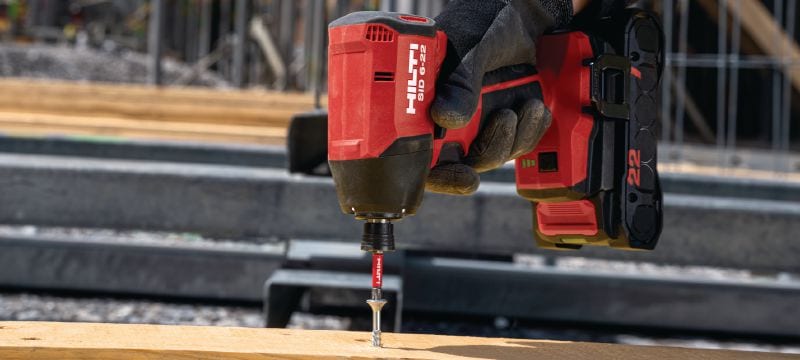

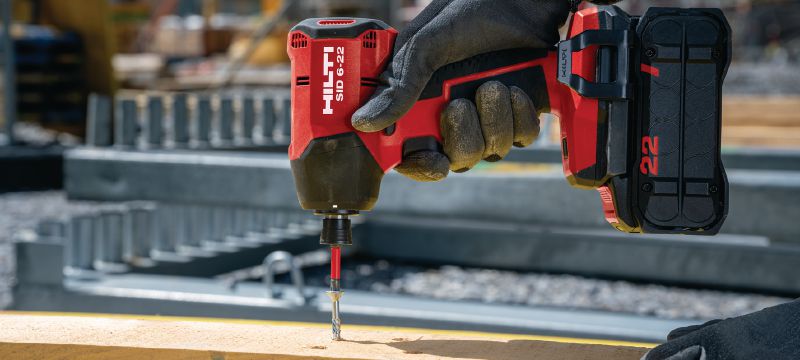

Wood screws – high-speed cordless impact driver for attaching wood to wood
Masonry screws – three gears so torque can be reduced for masonry screws such as HRD
Drilling in wood with spade bits such as WDB-S (max. diameter 25 mm)

For approval or certificate information, please see individual items.
