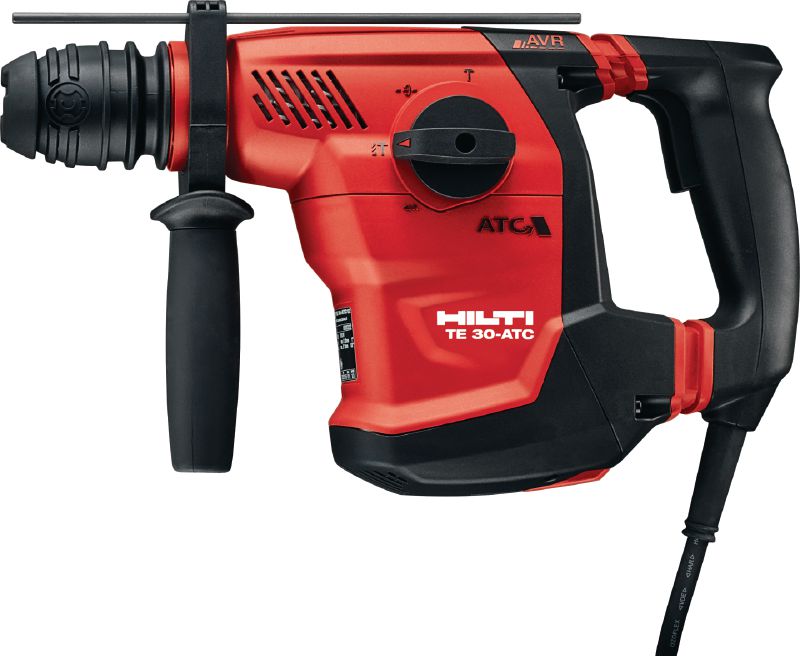

TE 30-ATC/AVR Rotary hammer
Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiselling, with Active Torque Control (ATC) and Active Vibration Reduction (AVR)
- Weight according EPTA Procedure 01/2003 without battery: 4 kg
- Optimum hammer drilling range: 10 - 20 mm
- Single impact energy: 3.6 J
Customers also searched for Steel & Metal, Drilling or Chipping.
Technical Data
Weight according EPTA Procedure 01/2003 without battery
4 kg
Optimum hammer drilling range
10 - 20 mm
Single impact energy
3.6 J
Working mode
Hammer drilling, Chiselling, Chisel setting, Drilling
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
850 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10 m/s² 1
Triaxial vibration for chiselling in concrete
10.2 m/s² 2
A-weighted emission sound pressure level
91 dB (A) 3
Dimensions (LxWxH)
371 x 109 x 218 mm
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Active Torque Control (ATC) stops the tool body from spinning uncontrolledly if the drill bit jams – helping to reduce a common safety hazard
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- Brushless motor for exceptionally high performance and superior system efficiency
- Quick-change chucks – changing bits is fast and tool-free
- Extra-long lifetime thanks to a highly robust chuck, motor components and casing
Applications

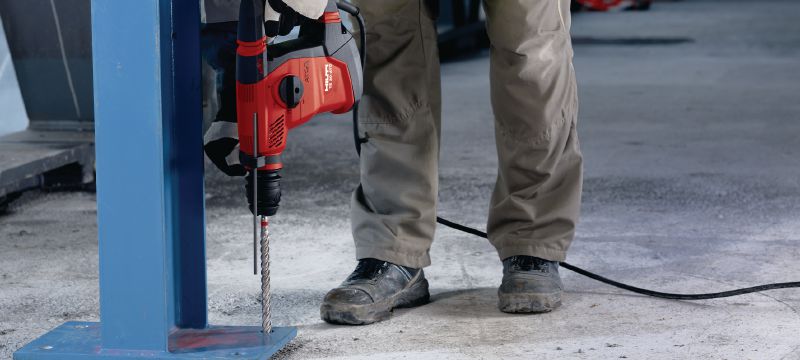

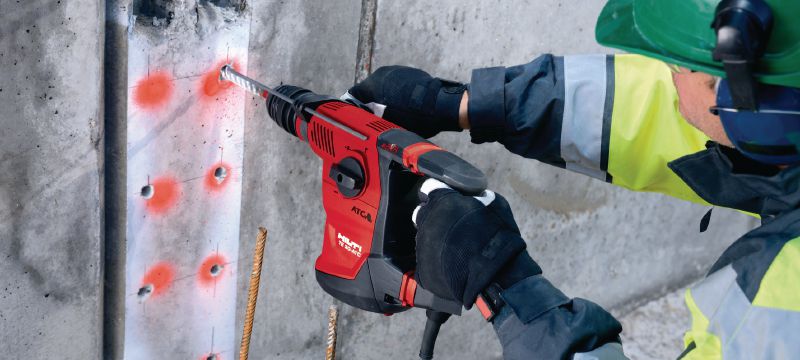

- Drilling anchor holes and through-holes in concrete and masonry, diameter range 4-28 mm, recommended range 10-20 mm

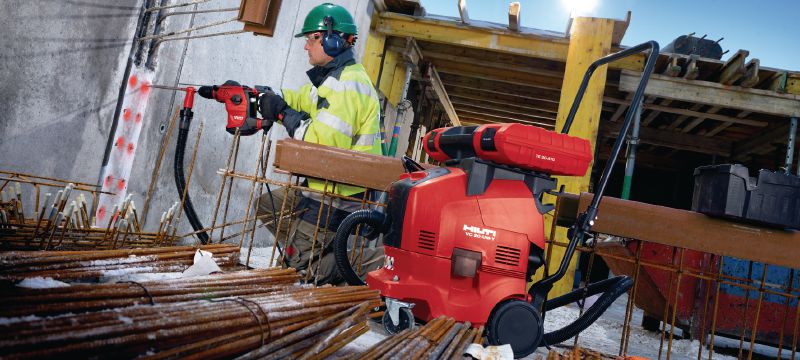

- Drilling holes for rebar doweling, diameter range 4 - 28 mm, recommended range 10 - 20 mm

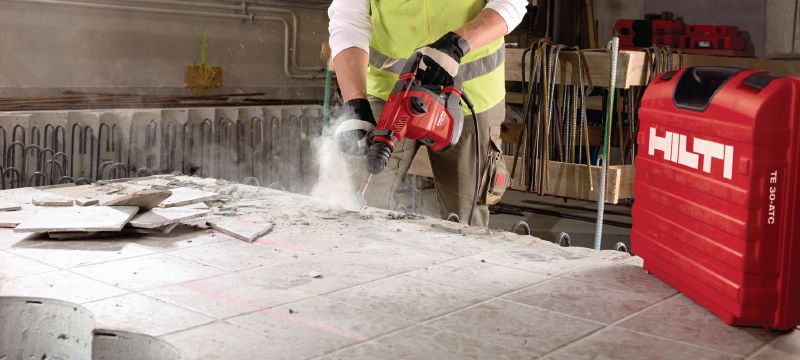

- Corrective chiselling
- Drilling in wood, metal and other materials using the quick-release chuck
- Driving and removing screws using the quick-release chuck
