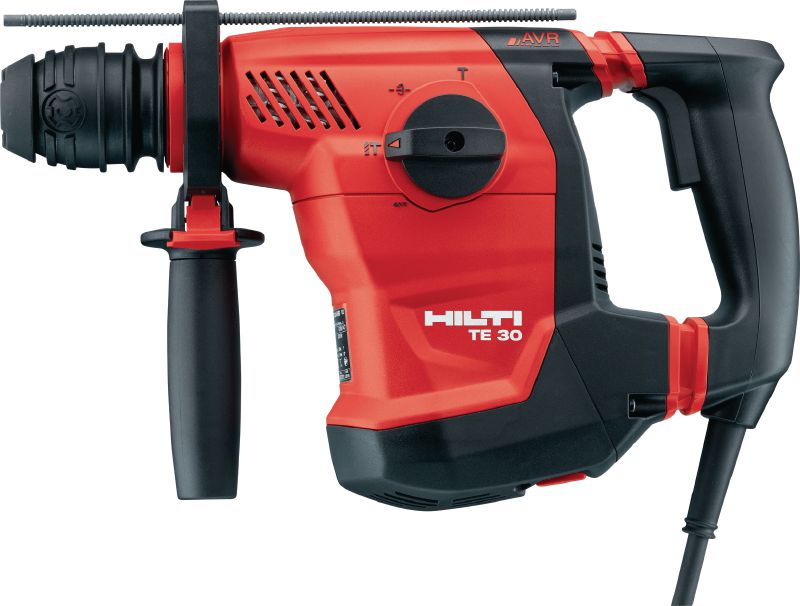

TE 30-AVR Rotary hammer
Combihammer TE 30-AVR 220V case #2160220
Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiselling, with Active Vibration Reduction (AVR)
- Weight according EPTA Procedure 01/2003 without battery: 4.2 kg
- Optimum hammer drilling range: 10 - 20 mm
- Single impact energy: 3.6 J
Customers also searched for drilling, combihammer, demolition or Steel & Metal.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Piece
1
EX. VAT
ZAR 22,416.67
ZAR 22,416.67 / 1 Piece
Technical Data
Weight according EPTA Procedure 01/2003 without battery
4.2 kg
Optimum hammer drilling range
10 - 20 mm
Single impact energy
3.6 J
Working mode
Hammer drilling, Drilling, Chisel setting, Chiselling
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
1100 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
9.7 m/s² 1
Triaxial vibration for chiselling in concrete
8.8 m/s² 2
A-weighted emission sound pressure level
95 dB (A) 3
Rated input power
1010 W
Dimensions (LxWxH)
371 x 113 x 225 mm
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- Quick-change chucks – changing bits is fast and tool-free
- Extra-long lifetime thanks to a highly robust chuck, motor components and casing
- Active Vibration Reduction (AVR) makes working with the tool less tiring and increases productivity
- Perfect balance, low weight and compact design for superior working comfort
Applications

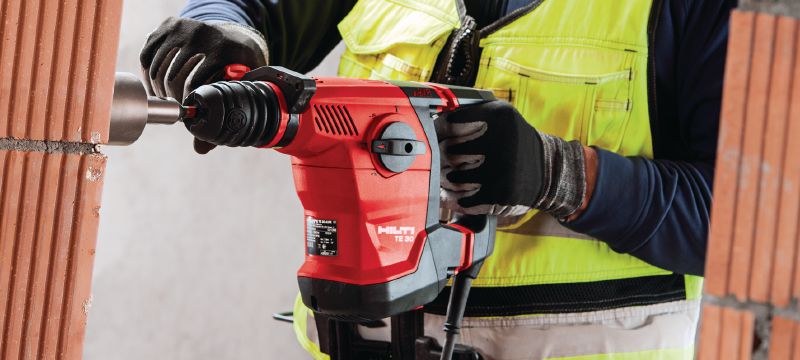

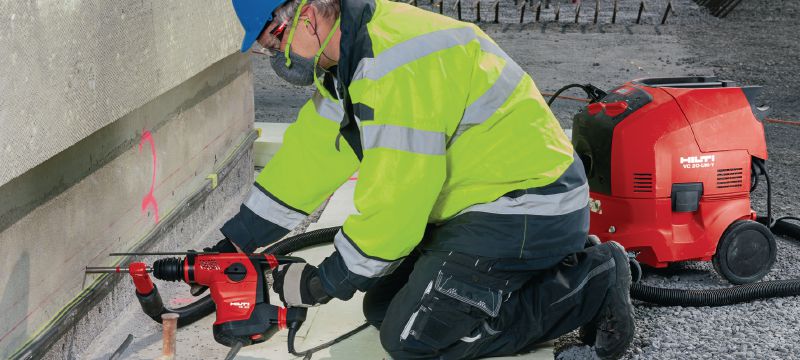

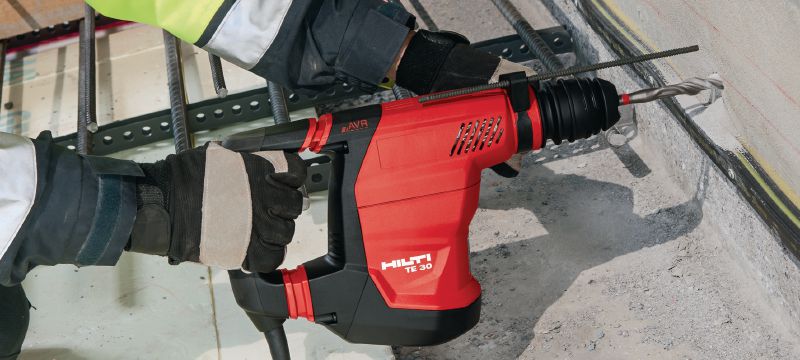

- Drilling anchor, rebar and through holes in concrete and masonry – possible diameter range 4-28 mm, recommended diameter range 10-20 mm

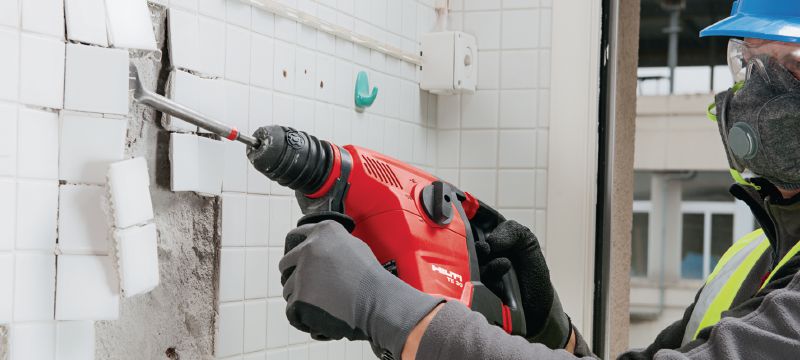

- Chiselling in brick and block, corrective chiselling and surface finishing on concrete
- Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter
- Driving anchor screws and concrete screw anchors
Hilti Tool Service
Hilti Tool Service
- Product warranty against parts and manufacturing irregularities for 20 years
Fleet Management
- Individual labels and online visibility provide tool fleet transparency
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- High-performing tools and latest technology help to increase jobsite productivity.
Related Products
Self-sharpening SDS Plus (TE-C) pointed chisel bits for demolishing concrete and masonry
Self-sharpening SDS Plus (TE-C) flat chisel bits for precision demolition of concrete and masonry
Self-sharpening SDS Plus (TE-C) scaling chisels for scraping away weld spatter, formwork seepage and other residues (one-sided cutting edge)
Ultimate SDS Plus (TE-C) hammer drill bits sets with different bit diameters and lengths (metric)
