Nuron

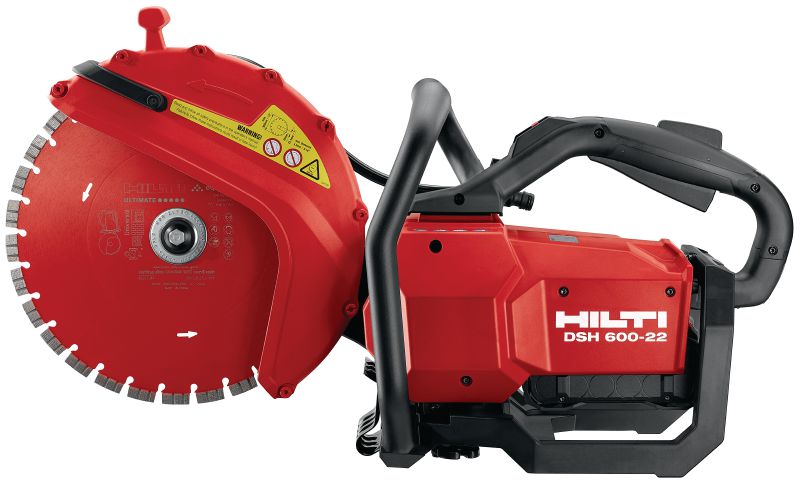

DSH 600-22 battery cut-off saw
heavy-duty, battery-powered cordless cut-off saw for concrete, metal and masonry (Nuron battery platform)
- Base materials: All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
- Dimensions (LxWxH): 660 x 290 x 350 mm
- Protection class: IEC Battery operated
Customers also searched for cut off saw, cut off machine, cutoff saw, cordless saw or cordless tools.
Technical Data
Base materials
All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
Dimensions (LxWxH)
660 x 290 x 350 mm
Protection class
IEC Battery operated
Work environment
Interior and exterior
Arbor Size
Option 1 : 25.4 mm; Option 2: 20 mm
A-weighted emission sound power level
108 dB (A) 1
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Battery-powered cut-off saw for heavy-duty tasks – DSH 600-22 gets the same work done as a 60cc gas cut-off saw, but without the fumes, noise, extra maintenance and fuel mix issues
- Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-255 Nuron batteries and 300mm SPX univ. A cordless-optimized blades
- Lower running costs – no fuel to buy or mix; less maintenance and up to double the lifespan of a gas saw thanks to a brushless electric motor
- Improved safety features – fume-free, quieter, lower-vibration cutting and a fast-acting blade brake (approx. 4 seconds)
- Better maneuverability – weighing just 8.9 kg (or 12.2 kg including two B 22-170 batteries and a 300 mm blade), this cut off saw is engineered for comfortable handling during all-day cutting
Applications

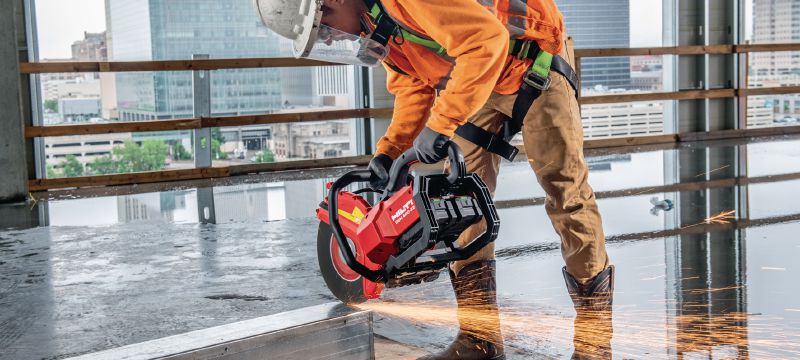

- Cutting concrete and masonry – such as making new openings or trimming blocks to size (max. cutting depth 120 mm with 300 mm blades)

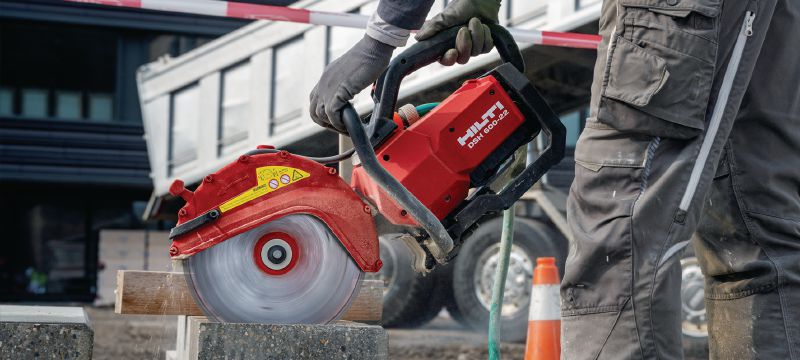

- Paving – cutting curbstones, pavers and asphalt

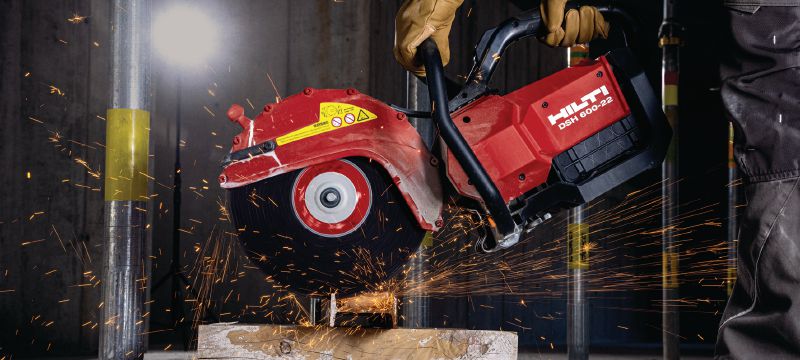

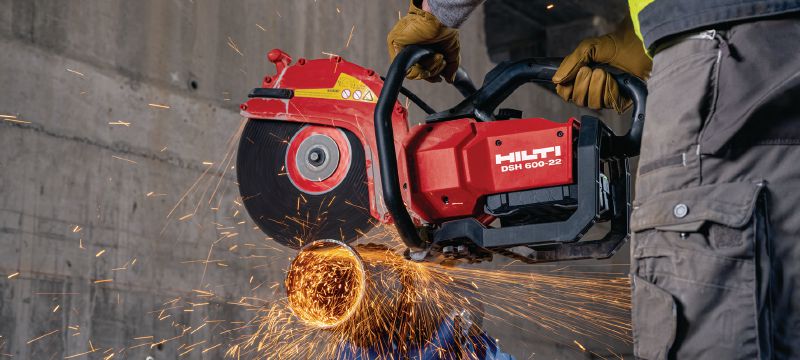

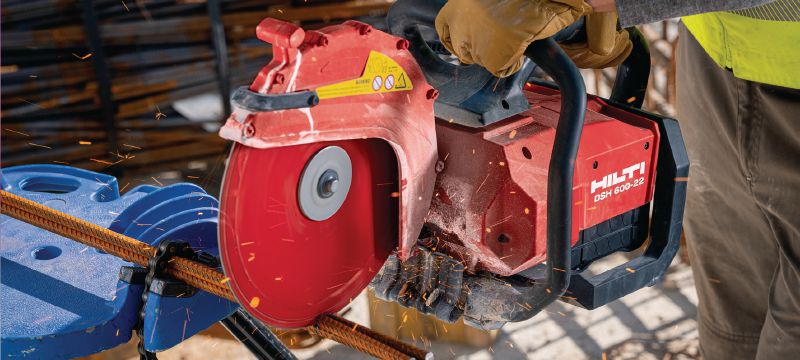

- Metalwork – cutting metal deck, reinforcing bar, steel sheet, metal track and pipes
- Cutting indoors – battery-powered cut-off saws are quieter and fume-free
- Virtually dust-free cutting when used with a compatible water supply, or lower-dust cutting using a compatible vacuum cleaner and DSH-DRS accessories (please verify your local silica dust exposure limits)
For approval or certificate information, please see individual items.
