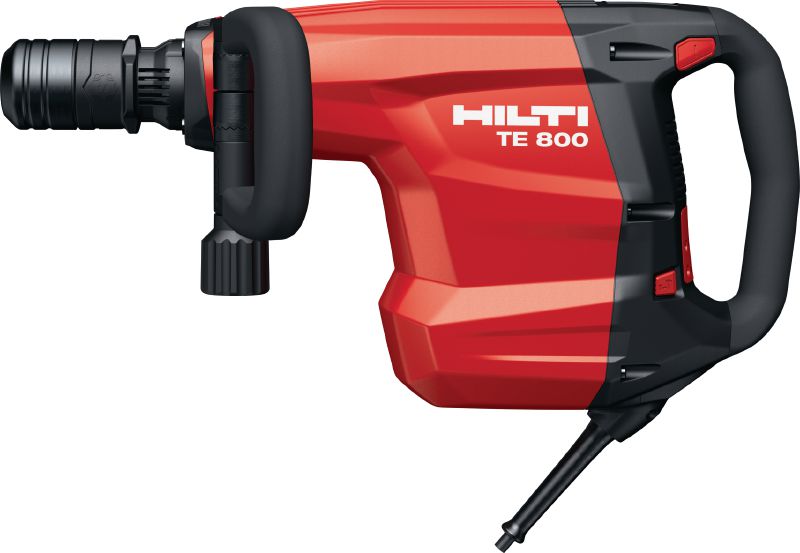

Very powerful TE-S demolition hammer for heavy-duty chiselling in concrete

  • Working direction: Wall, Floor
  • Tool chuck type: TE-S
  • Weight according EPTA Procedure 01/2003 without battery: 10.5 kg

Customers also searched for Construction or Mechanical.

Technical Data

Working direction
Wall, Floor
Tool chuck type
TE-S
Weight according EPTA Procedure 01/2003 without battery
10.5 kg
Single impact energy
21 J
Full hammering frequency
1890 impacts/minute
Max. chiselling performance
2500 cm³/min
Dimensions (LxWxH)
582 x 141 x 326 mm
Triaxial vibration for chiselling in concrete
16.0 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
87 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Powerful breaking performance thanks to exceptional impact energy and innovative Hilti chisels
  • Robust design improves lifetime, even in tough conditions
  • Power reduction button for use on lighter materials and for greater precision in controlled breaking jobs
  • Optional TE DRS-B dust removal system collects up to 95% of fine dust
  • OSHA 1926.1153 Table 1 compliant when used with the TE DRS-B dust removal system and a Hilti vacuum cleaner

Applications

  • Demolition work on walls
  • Corrective work on floor slabs
  • Breaking out openings for doors and windows
  • Making penetrations for ducts and pipes

For approval or certificate information, please see individual items.
