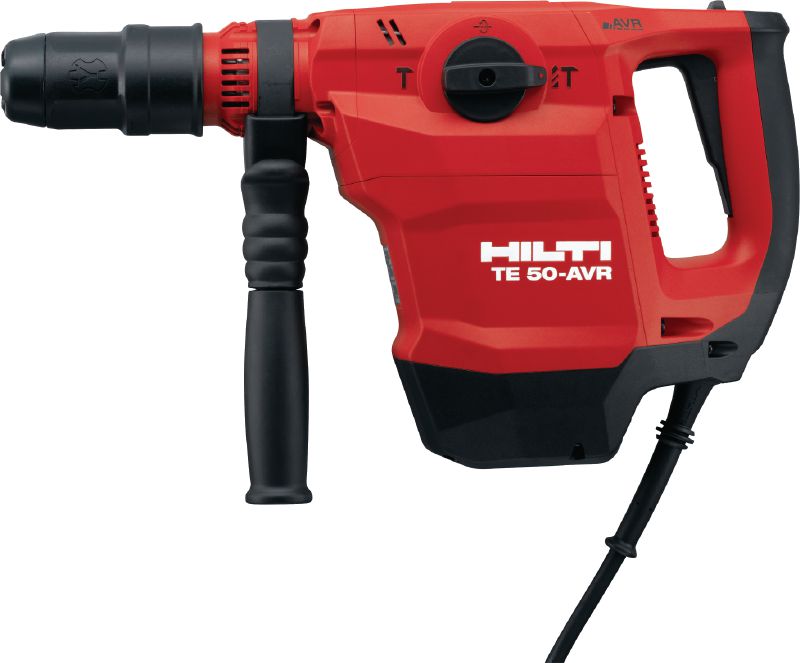

TE 50-AVR Rotary hammer

Combihammer TE 50-AVR 230 V #2127967

Our most compact SDS Max (TE-Y) rotary hammer for lightweight comfort and control while drilling or chiseling in concrete, stone, and masonry

Weight according EPTA Procedure 01/2003 without battery: 6.1 kg
Single impact energy: 6 J
Rated current: 5.8 A

Customers also searched for demolition hammer, demolition drills, concrete demolition tools , Electrical or HVAC.

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT

ZAR 26,373.70

1 Piece

Technical Data

Weight according EPTA Procedure 01/2003 without battery

6.1 kg

Single impact energy

6 J

Rated current

5.8 A

Hammer drilling diameter range

12 - 82 mm

Optimum hammer drilling range

16 - 32 mm

Hammer drilling RPM

360 rpm

Full hammering frequency

3510 impacts/minute

Functionality

Active Vibration Reduction (AVR), Chiselling, Hammer drilling

Triaxial vibration value for hammer drilling into concrete (ah,HD)

8.8 m/s² ¹

Dust removal system available

TE DRS-Y, TE DRS-D, TE DRS-BK

Triaxial vibration for chiselling in concrete

7.1 m/s² ²

Rated input power

1100 W

Dimensions (LxWxH)

449 x 115 x 272 mm

A-weighted emission sound power level

108 dB (A) ³

A-weighted emission sound pressure level

100 dB (A) ⁴

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 734.8 KB ]

Download

Features & Applications

Features

Exceptionally light and versatile SDS Max (TE-Y) rotary hammer
Low contact pressure for high user comfort
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

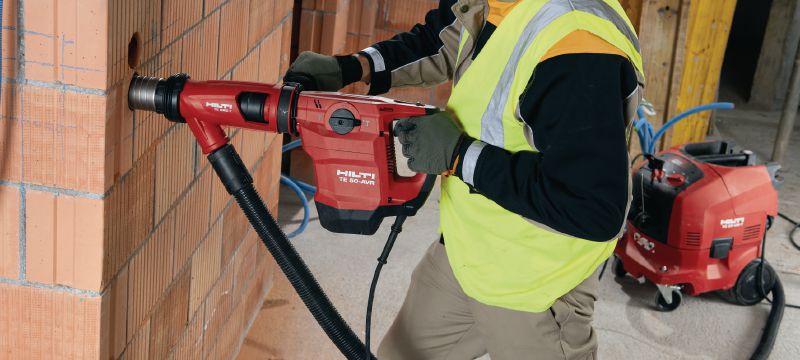

Optional DRS-Y dust removal system collects up to 95% of dust
Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite

Applications

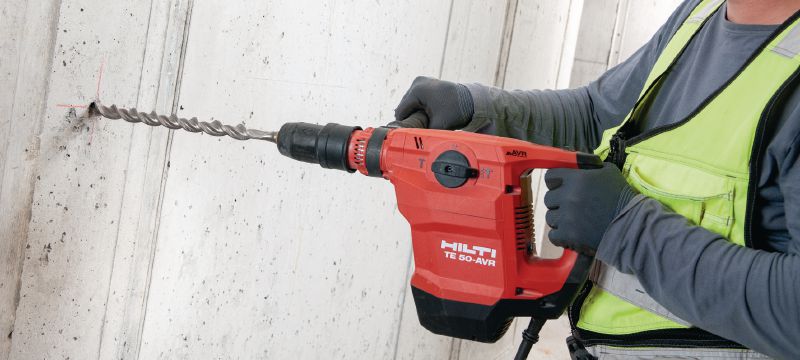

Hammer drilling in concrete, masonry and natural stone (possible diameter range 12-55 mm, recommended diameter range 16-32 mm)

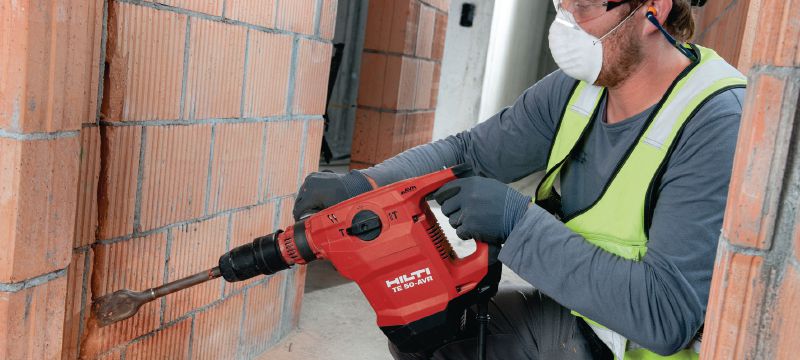

Light to medium-duty chiselling in masonry and concrete
Drilling penetrations mainly in masonry using percussion core bits (possible diameter range 45-150 mm, recommended diameter range up to 82 mm)
Hammer drilling in concrete, masonry and natural stone (possible diameter range 1/2"- 2", recommended diameter range 5/8" - 1 1/4")
Drilling penetrations mainly in masonry using percussion core bits (possible diameter range 1 3/4"- 5 15/16", recommended diameter range up to 3 1/4" )
